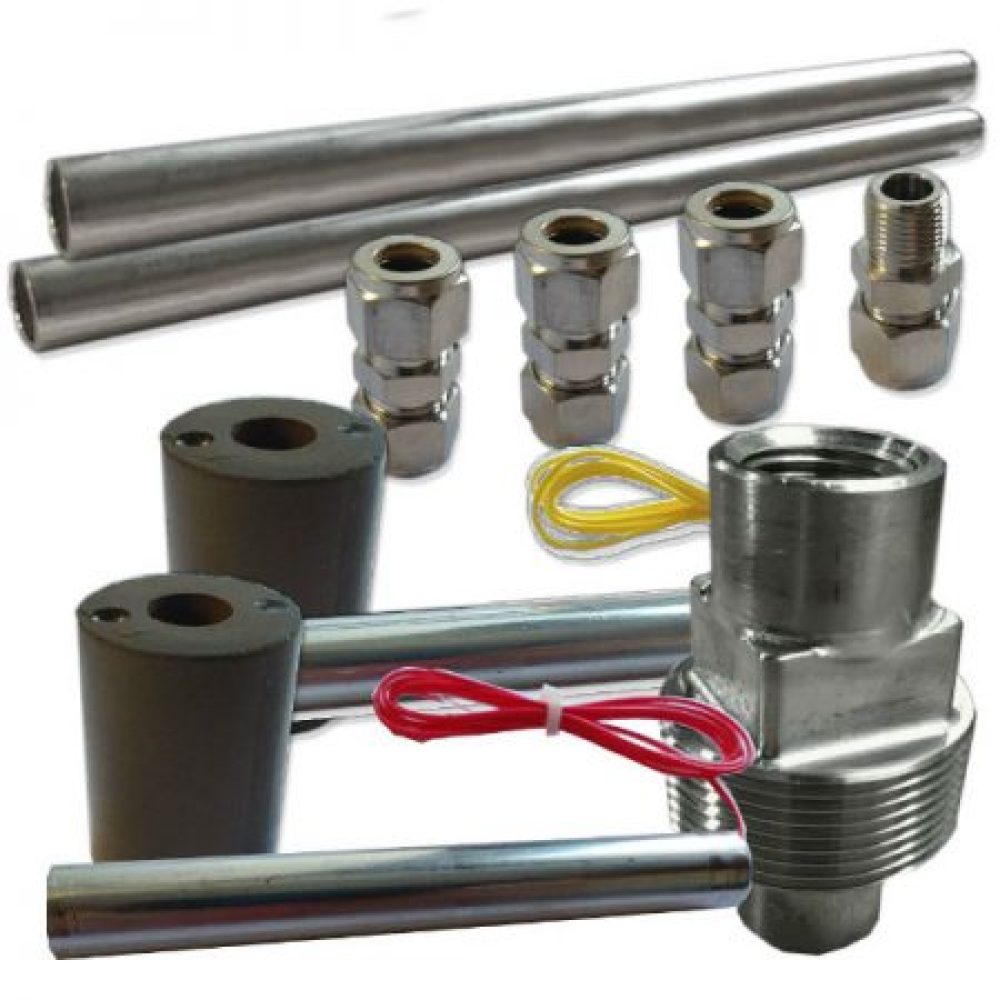

This complete kit comes with everything needed to fabricate a two-level float switch sensor. If you require more than two levels additional fittings and switch points can be purchased separately. The middle and end switches come with 5ft of lead wires. The extension tubes can be cut to length allowing you to put the switch points at your desired location.
|Part #||Reed Switch||Float Dry State||Price|
|FA-2002-SB||70 VA SPST||N.C. or N.C||$137.50|
|Operating Temp||Maximum Pressure||Float Spec. Gravity|
|150°F (230°F in oil)||150 PSI||.50|
|1-1/4″ npt||1.25″ diameter||22 awg PTFE 60″ Long|
