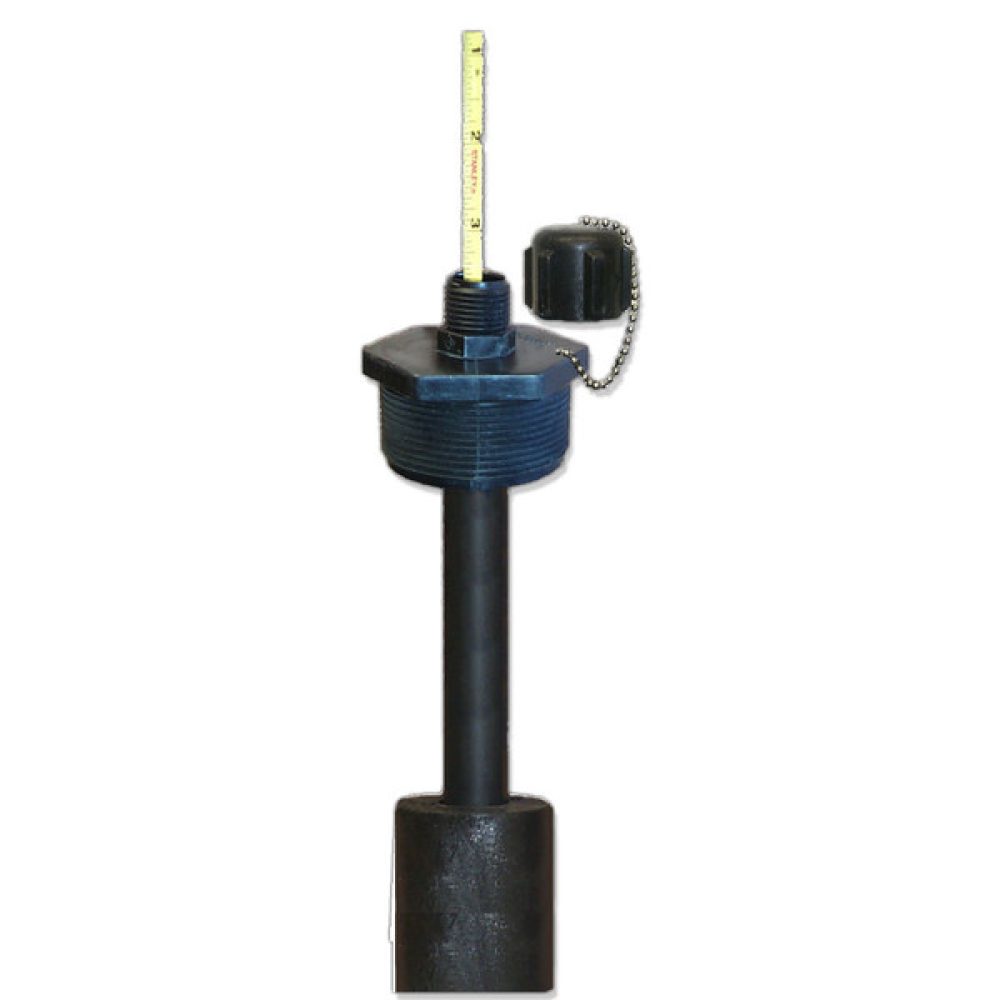

Liquid Level Tape Measure Polypropylene

Clear
SKU: LLTM-2000-PP Categories: , Tag:

Description

These convenient units are ideal for storage tanks and transportable containers. The LLTM-2000 units are easy to operate and offer a closed system for containers, which are transported frequently. Operating Principle A liquid level reading is taken by slowly pulling the tape out of the housing. When the liquid level point is reached, the tape locks-in at the position of the internal float. The level measurement is then read directly off the tape measure. After a reading is taken, the tape is securely stored in the housing. Units are available up to 60″ long in Stainless Steel, Brass and Buna-N or Polypropylene. All units are 2″ NPT mounted with a 2″ diameter float.
PDF Part #
LLTM-2000-PP

Additional information

Dimensions N/A
Specify Length in inches

8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72
