|| Polypropylene || SM-1200-PP


Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

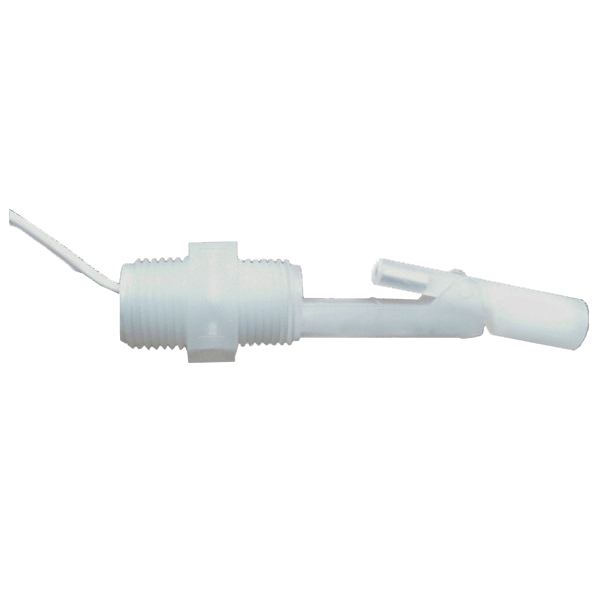

This rugged side mount liquid level float switch is used when access to the top of the tank is not an option. It’s constructed of polypropylene and has a low specific gravity which is great for many different liquids. Standard 1/2″ NPT mounting threads are convenient for most installations.


Part # Reed Switch Dry State Price
SM-1200-PP 30 VA N.O. / N.C. $36.00
Operating Temp Maximum Pressure Float Spec. Gravity
-22°F to 220°F 100 PSI .60
Thread Float Lead Wires
1/2″ npt x 1/2″ npt .680″ diameter 22 AWG PVC 24″

Additional information

Weight 0.25 lbs
Dimensions 2.2 × 2.2 × 6.2 in
