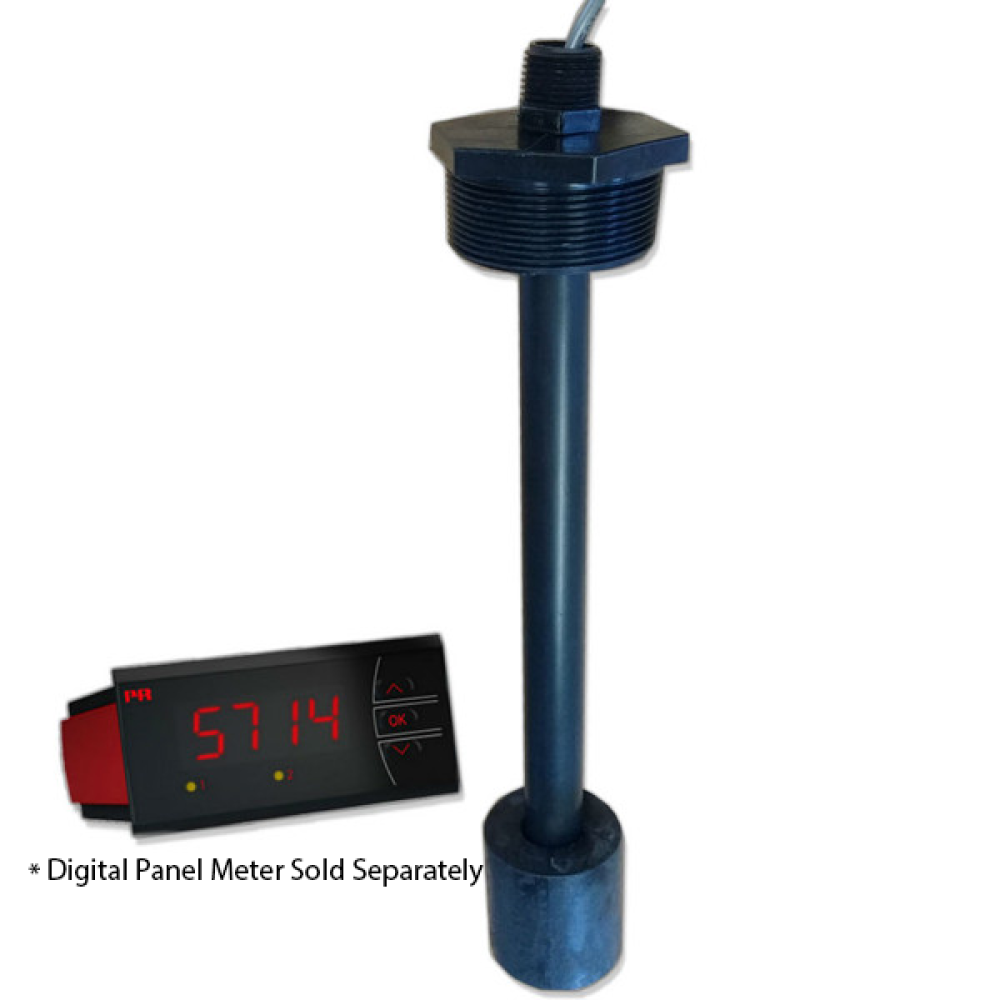

Polypropylene – CLM-2000-PP

Clear
SKU: CLM-2000-PP Categories: ,

Description

These sensors are used in applications where continuous indication is needed. CLM’s come in 1/4″ resolution and are constructed out of 316 Stainless Steel, Stainless Steel & Buna or Polypropylene. The sensor is a 3-wire potentiometer and requires a signal conditioner or digital panel meter for is a 4-20ma output is needed. The CLM is a sensible and economical choice when multi-level switches just will not do. Standard units available up to 8 feet.

Operating Principle
A series of reed switches and resistors are positioned on a circuit board, which is epoxied inside the stem. A regulated voltage is put across the circuit, which is connected to either the signal conditioner or digital panel meter. The liquid level drives a float containing a magnet past the reed switches closing them in a repeatable pattern limiting the voltage across the circuit as the level rises.

PDF Part #
CLM-2000-PP

Additional information

Weight 4 lbs
Size(inches)

8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96
