Description

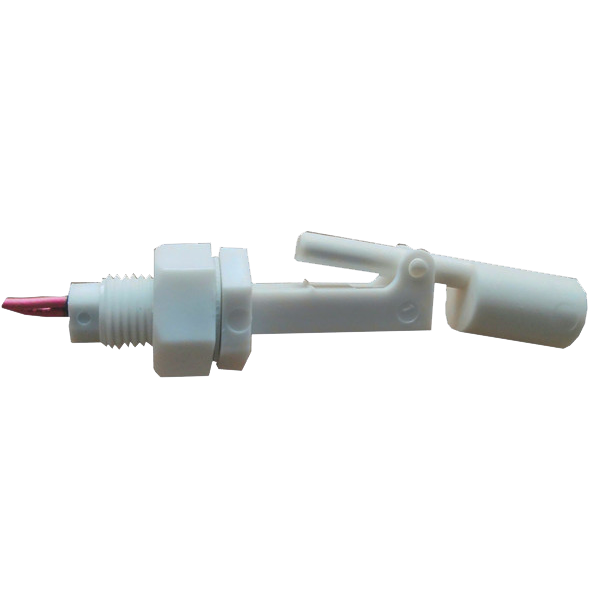

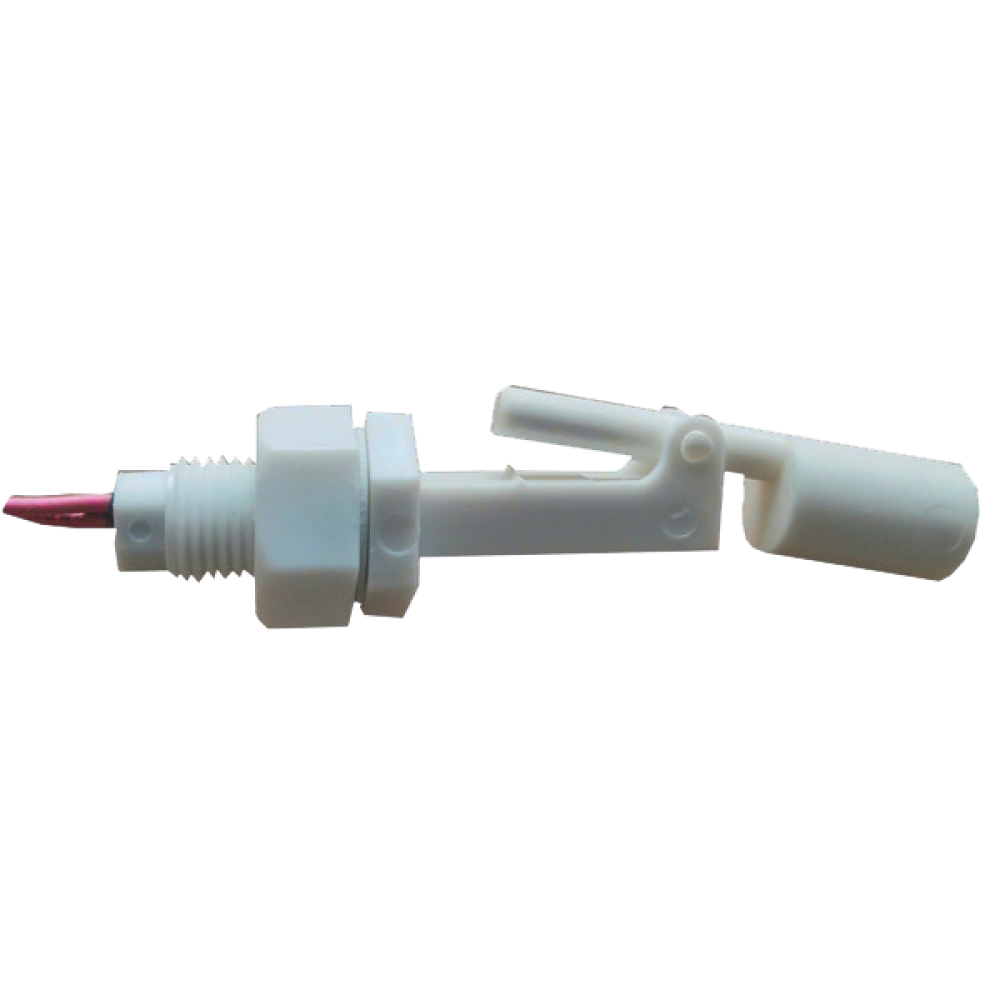

Sidemount liquid level switches are used when access to the top of the tank is not an option. This float can be used normally open or normally closed by mounting the float with the hinge point facing up or down. Installation is easy, simply drill a 1/2″ dia blind hole in the side of the tank and fasten with the included nut and gasket.
PDF
| Part # |
Reed Switch |
Dry State |
Price |
| SM-1100-PP |
50 VA |
N.O. / N.C. |
$30.00 |
| Operating Temp |
Maximum Pressure |
Float Spec. Gravity |
| -22°F to 210°F |
150 PSI |
.75 |
| Thread |
Float |
Lead Wires |
| 1/2″-20 straight |
.585″ diameter |
20 AWG PVC 12″ |
