Stainless Steel – CLM-2000-SS

SKU: CLM-2000-SS Categories: , Tags: , ,

Description

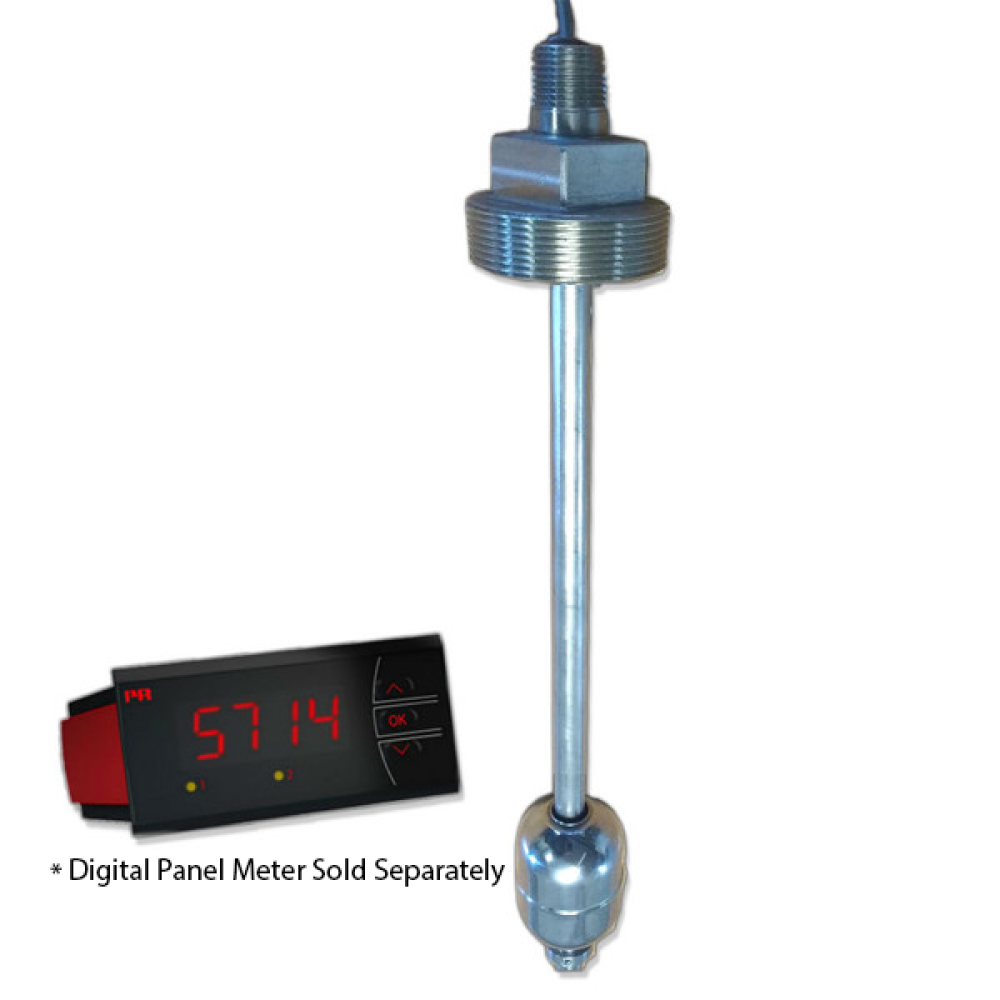

These sensors are used in applications where a continuous indication is needed. These rugged dependable sensors have 1/4″ resolution and are constructed out of 316 Stainless Steel. The output is a 3-wire potentiometer. If a 4-20ma output is required it can be easily hooked up to a signal conditioner or digital panel meter. The CLM is a sensible and economical choice when multi-point level switches just will not do. These sensors are made to order and are available up to 8 feet in length.

Operating Principle
A series of reed switches and resistors are positioned on a circuit board, which is epoxied inside the stem. A regulated voltage is put across the circuit, which is connected to either the signal conditioner or digital panel meter. The liquid level drives a float containing a magnet past the reed switches closing them in a repeatable pattern limiting the voltage across the circuit as the level rises.

PDF Part #
CLM-2000-SS

Additional information

Weight 4 lbs
Dimensions N/A
Size(inches)

8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96
