Stainless Steel – LKI-2000-SS

SKU: LKI-2000-SS Categories: , Tags: ,

Description

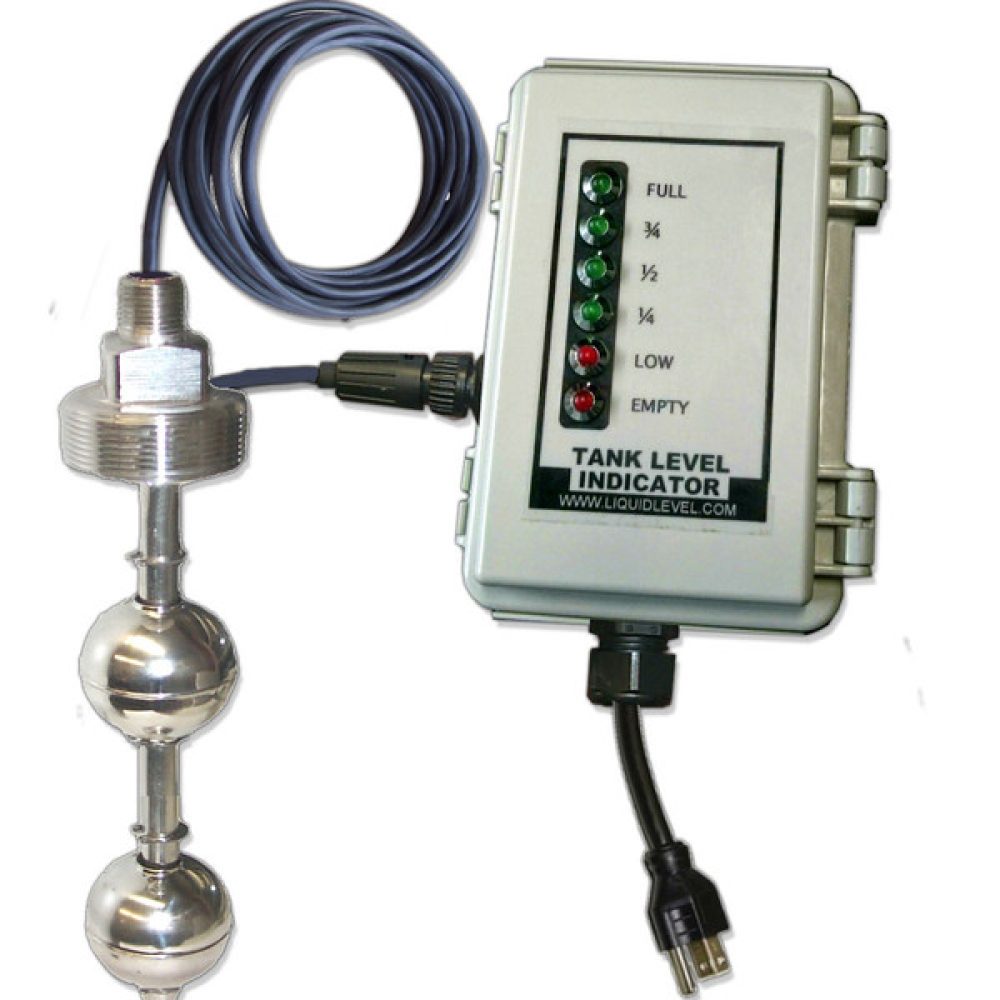

LKI boxes are a convenient solution for liquid level indication. Bright LED lights indicate where the level is inside the tank.   A rugged  ABS plastic Nema4/4x enclosure can be wall mounted for easy viewing. Additional relays can be incorporated inside the box as outputs for pump control and alarms. The adhesive overlay which reads FULL – 3/4 – 1/2 – 1/4 – LOW/EMPTY can also be customized to meet your specific requirements. 12 or 24 vac/dc versions are also available upon request.

Operating Principle
A series of reed switches are positioned inside the stem at specific intervals. A single pole double throw switch is used for the low/empty level. When the tank is full all the lights are on except for the empty light. The lights will go off as the level falls until the low/empty level is reached. As the level falls below the low level the low light will go off and the empty light will come on.

PDF Part #
LKI-2000-SS

Additional information

Weight 1.6 lbs
Dimensions N/A
Size(inches)

18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96
