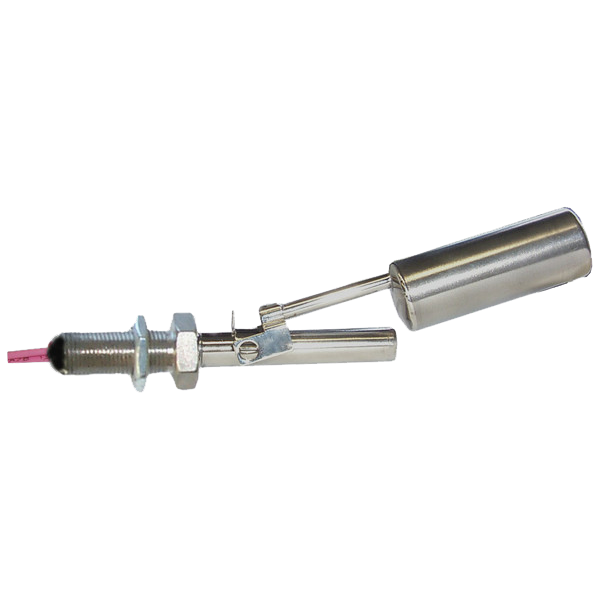

|| Stainless Steel || SM-1100-SS

$121.00

Description

Sidemount liquid level switches are used when access to the top of the tank is not an option. Internally and externally mounted options available.

PDF

Part # Reed Switch Dry State Price
SM-1100-SS 70 VA N.O. / N.C. $121.00
Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 300°F 500 PSI .75
Thread Float Lead Wires
3/8″-24 straight 0.625″ diameter 20 AWG PVC 24″

Additional information

Weight 0.25 lbs
Dimensions 2.2 x 2.2 x 6.2 in
