|| Bilge Level Switch || BLS-Series


SKU: BLS-271 Category: Tags: , ,
Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

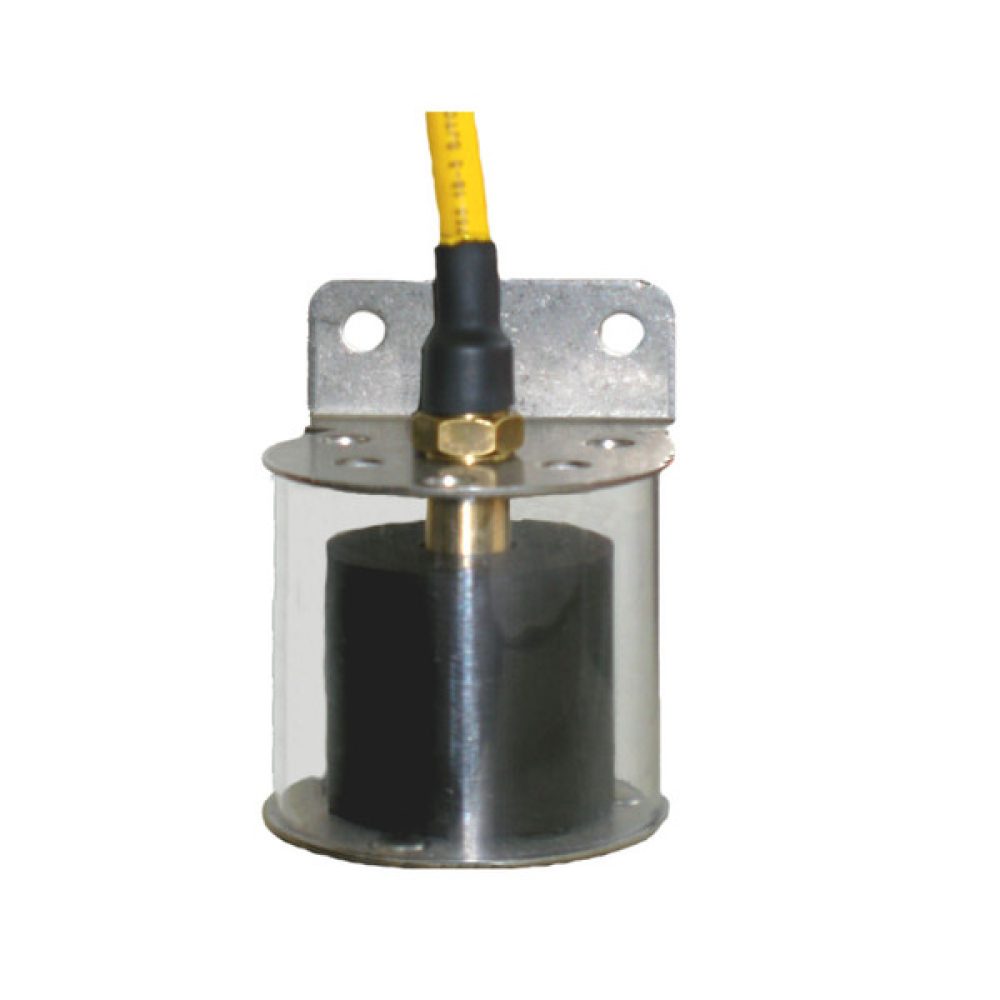

This is a rugged, compact, slosh shielded bilge water alarm switch for use on vessels of all sizes. The stainless steel bracket can be mounted at your desired level. It’s built for harsh conditions and is compatible with seawater and a variety of fuels, gasoline, hydraulic and lube oils, and provide stable level detection in highly contaminated, turbulent liquids.

Part # Reed Switch Dry State Price
BLS-271 100 VA SPDT N.O. & N.C. $120.00

Dry State: The condition of the reed switch when the tank is dry.
SPDT: Single Pole Double Throw

Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 180°F (230°F in oil) 150 PSI .40
Thread Float Lead Wires
N/A 1.90″ diameter 18 AWG Seoprene 105 SJE00W 6ft

Additional information

Weight 1 lbs
Dimensions 5 × 5 × 8 in
