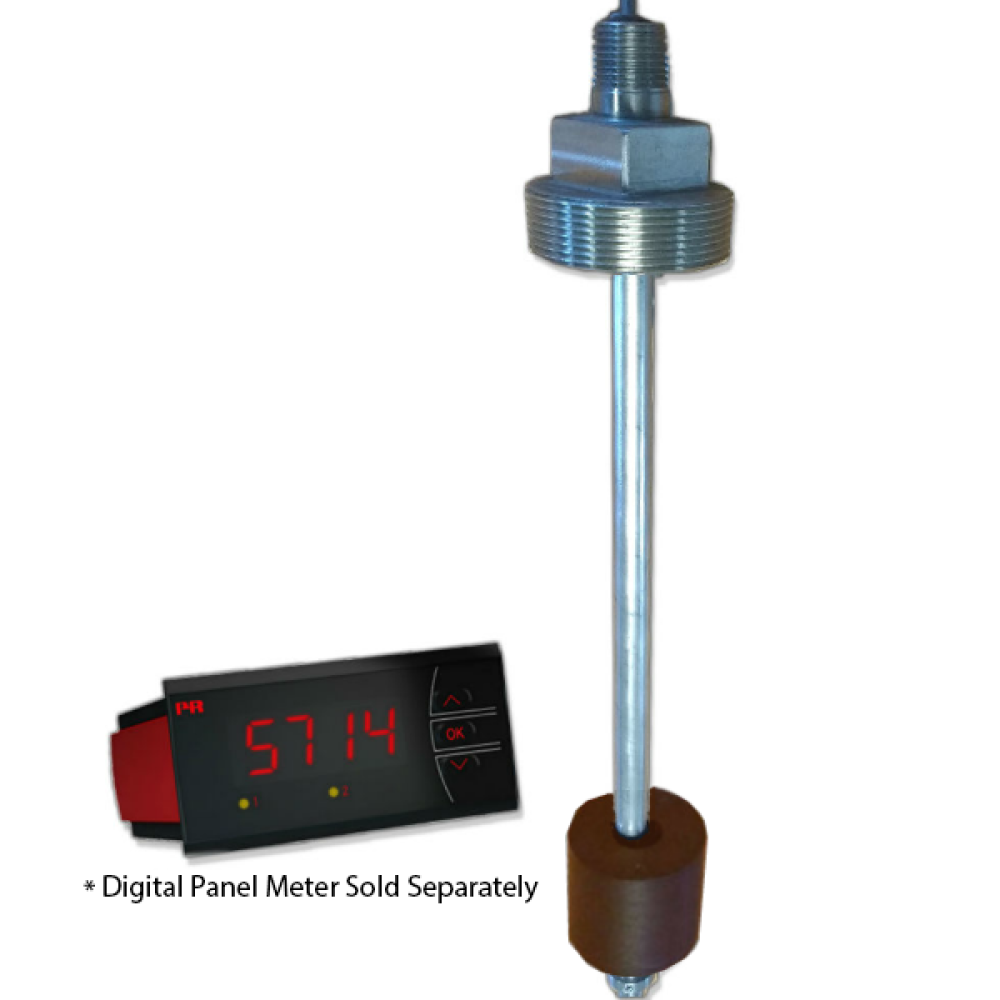

Stainless & Buna – Continuous Level Sensor

$305.00

Clear

Description

These sensors are used in applications where continuous indication is needed. CLM’s come in 1/4″ resolution and are constructed out of all 316 Stainless Steel, Stainless & Buna or Polypropylene. This 3-wire potentiometer requires a signal conditioner or digital panel meter for a 4-20ma output. The CLM is a sensible and economical choice when multi-level switches just will not do. Standard units available up to 8 feet. Units between 8-12 feet available by special order only. Call office for details.

Operating Principle
A series of reed switches and resistors are positioned on a circuit board, which is epoxied inside the stem. A regulated voltage is put across the circuit, which is connected to either the signal conditioner or digital panel meter. The liquid level drives a float containing a magnet past the reed switches closing them in a repeatable pattern limiting the voltage across the circuit as the level rises.

PDFPart #
CLM-2000-SB

Additional information

Weight 1.2 lbs
Choose length in inches

8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96
