|| Stainless Steel || SM-1000-SS

5.00 out of 5 based on 1 customer rating
(1 customer / Add a review)

$126.50

Description

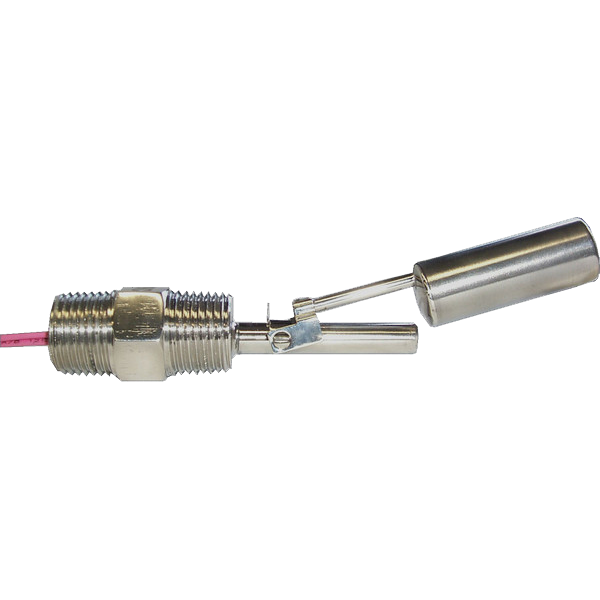

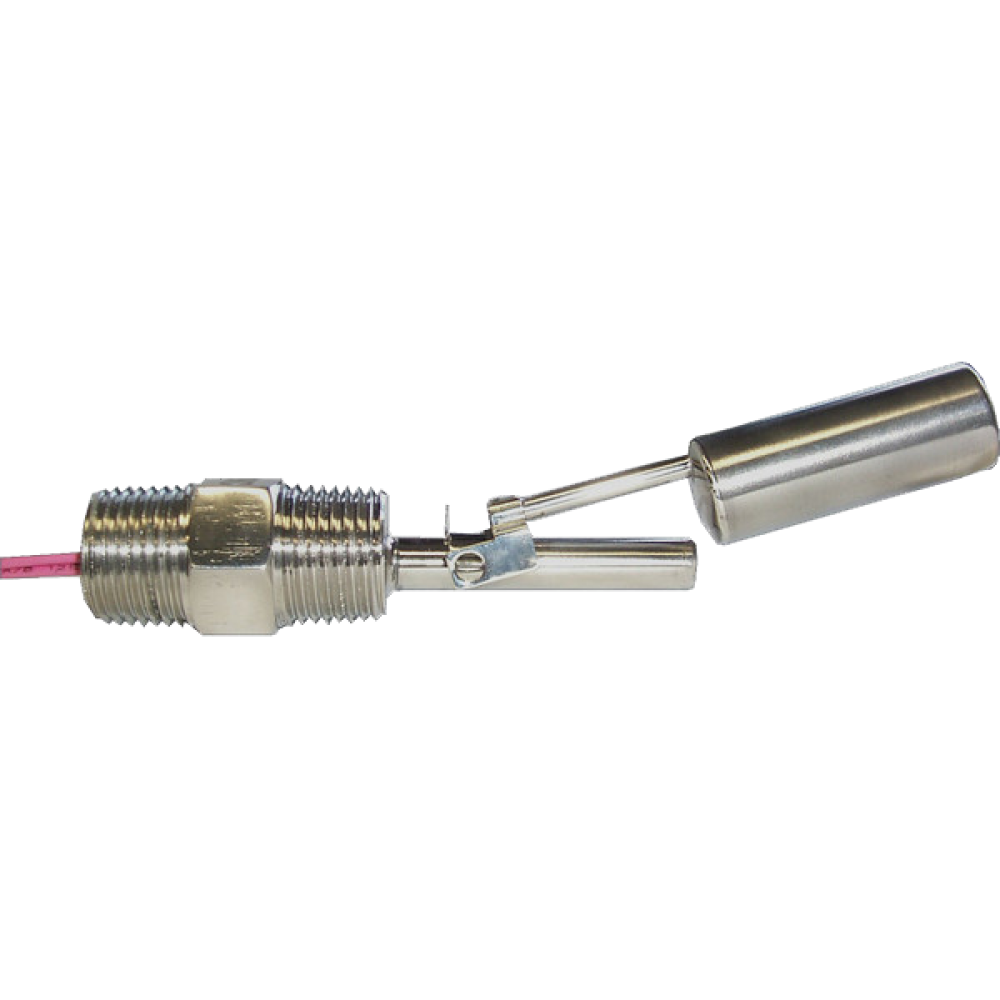

Sidemount liquid level float switches are used when access to the top of the tank is not an option. Internally and externally mounted options available.

PDF

Part # Reed Switch Dry State Price
SM-1000-SS 70 VA N.O. / N.C. $126.50
Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 300°F 500 PSI .75
Thread Float Lead Wires
1/2″ x 1/2″ npt 0.625″ diameter 20 AWG PVC 24″

Additional information

Weight 0.25 lbs
Dimensions 2.2 x 2.2 x 6.2 in

1 review for || Stainless Steel || SM-1000-SS

  1. 5 out of 5

    Installed two of these float switchs in a 55 gallon plastic tank. No leaks and both the top (full) and bottom (re-fill) work fine.
