Description

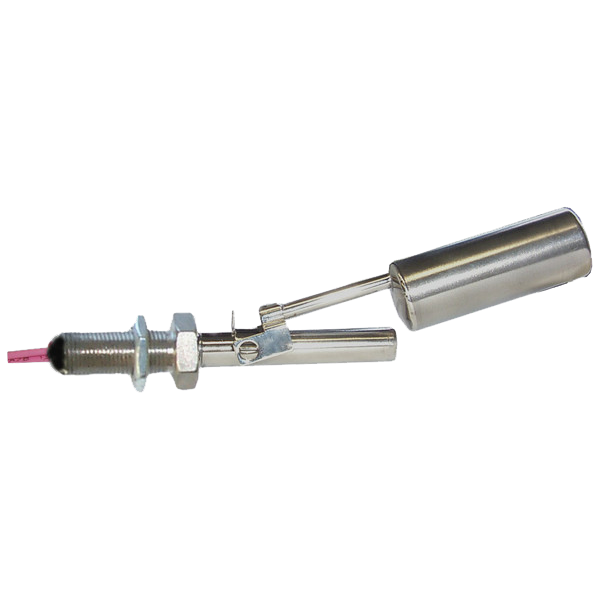

Sidemount liquid level switches are used when access to the top of the tank is not an option. Internally and externally mounted options available.
PDF| Part # | Reed Switch | Dry State | Price |
| SM-1100-SS | 70 VA | N.O. / N.C. | $121.00 |
| Operating Temp | Maximum Pressure | Float Spec. Gravity |
| -40°F to 300°F | 500 PSI | .75 |
| Thread | Float | Lead Wires |
| 3/8″-24 straight | 0.625″ diameter | 20 AWG PVC 24″ |
