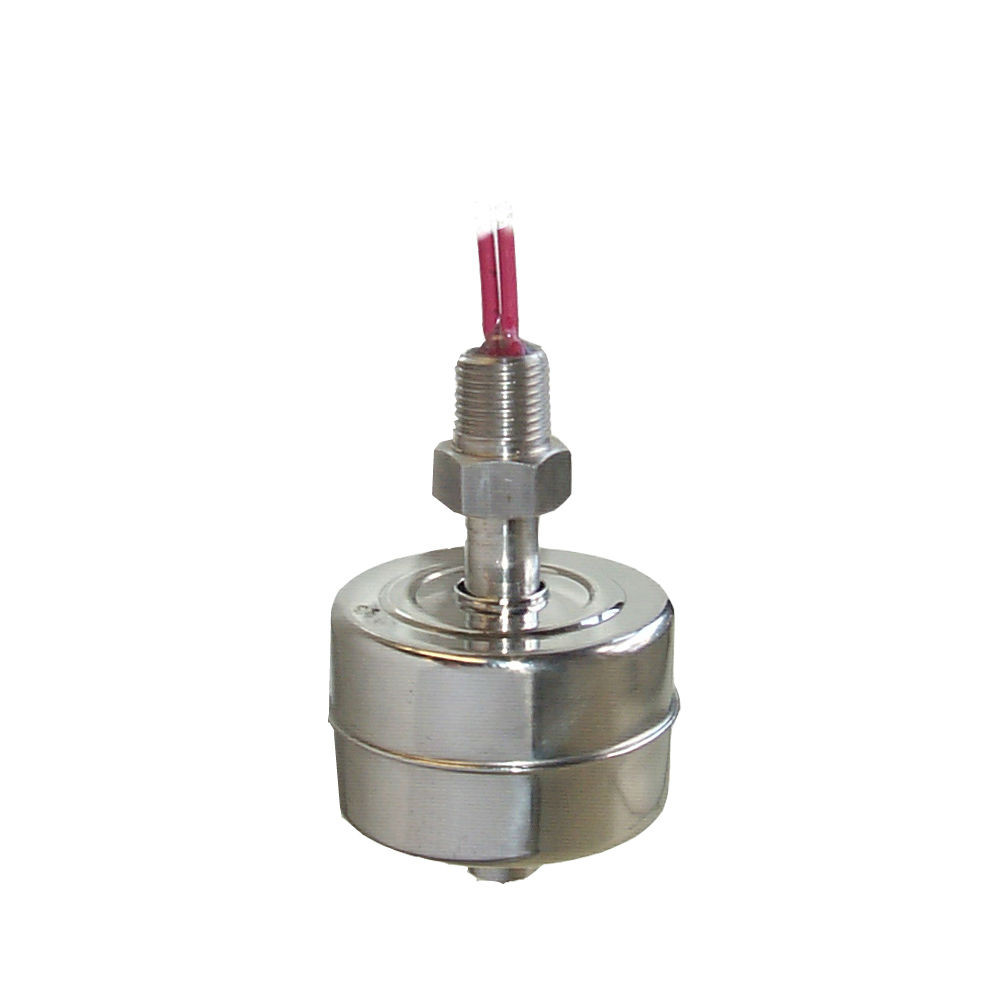

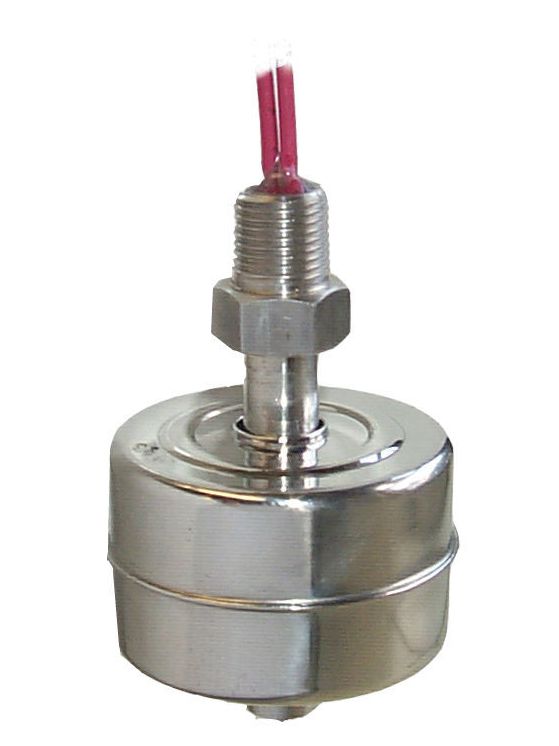

|| Stainless Steel || LS-11-070

Clear

Description

Stainless Steel switches are ideal for high temperature and pressure applications. Rugged construction allows these units to be used for reliable switching in a wide variety of chemicals, oils and water in harsh environments.

PDF

Part # Reed Switch Dry State Price
LS-11-071/2 70 VA SPST N.O.* $47.50
LS-11-073/4 100 VA SPST N.O.* $51.90
LS-11-075 8 VA SPDT N.O. / N.C. $53.00
* The dry state can be changed from Normally Open to Normally Closed by inverting the float. Dry State: The condition of the reed switch when the tank is dry. N.O.: Normally Open N.C.: Normally Closed SPST: Single Pole Single Throw SPDT: Single Pole Double Throw
Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 300°F 450 PSI .54
Thread Float Lead Wires
1/8″ npt 1.50″ diameter 20 AWG PVC 24″

Additional information

Weight 0.07 lbs
Dimensions 2.2 x 2.2 x 6.2 in
Part

LS-11-071/2, 70 VA SPST, N.O., LS-11-073/4, 100 VA SPST, N.O., LS-11-075, 8 VA SPDT, N.O. / N.C.
