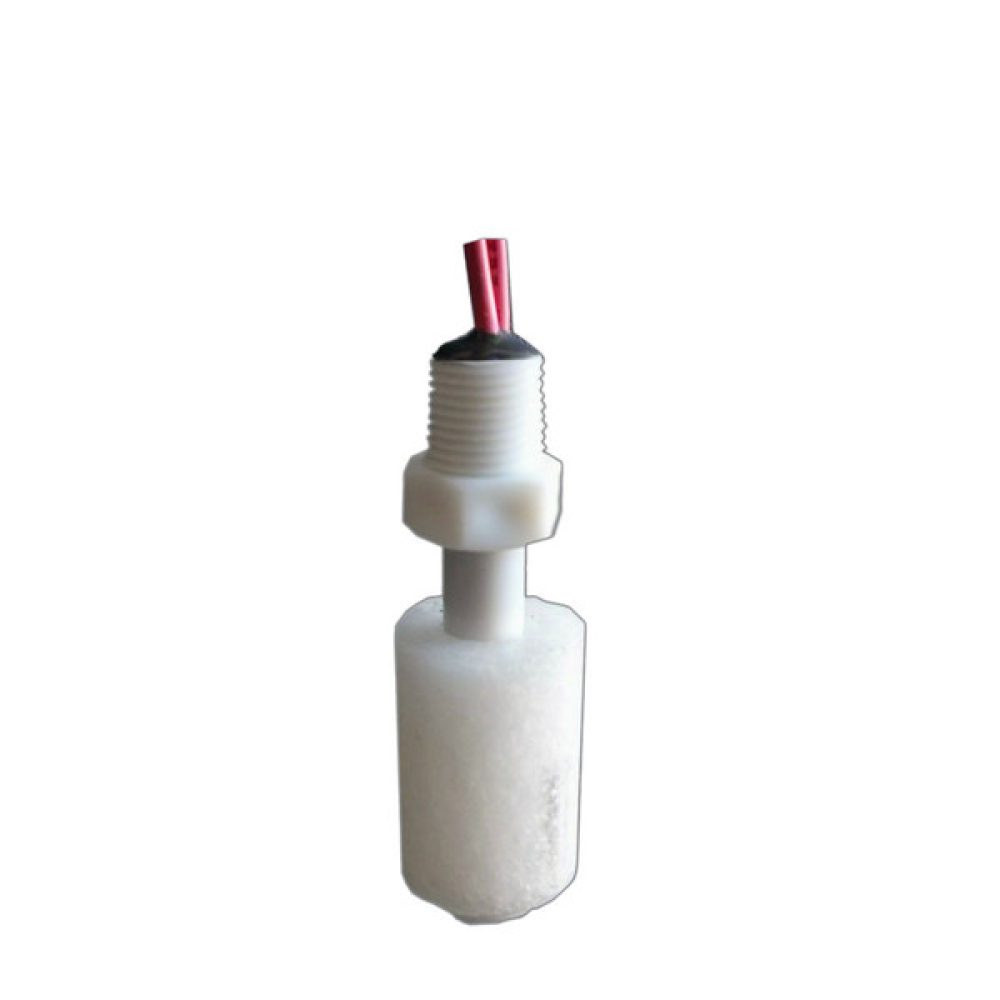

|| Polypropylene || LS-14-190

Clear
SKU: LS-14-191/2, 70 VA, N.O./N.C. Categories: , ,
Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

Description

Plastics are ideal in highly corrosive water and chemical applications were metallic units are not desired. Economical pricing makes plastic the material of choice for the OEM.

PDF

Part # Reed Switch Dry State Price
LS-14-191/2 70 VA SPST N.O.* $23.75
LS-14-193/4 100 VA SPST N.O.* $28.15
LS-14-195 8 VA SPDT N.O. / N.C. $29.25

* The dry state can be changed from Normally Open to Normally Closed by inverting the float.

Dry State: The condition of the reed switch when the tank is dry.
N.O.: Normally Open
N.C.: Normally Closed
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw

Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 212°F 150 PSI .80
Thread Float Lead Wires
1/8″ npt 0.70″ diameter 20 AWG PVC 24″

Additional information

Weight 0.18 lbs
Dimensions 2.2 x 2.2 x 6.2 in
Part

LS-14-191/2, 70 VA SPST, N.O., LS-14-193/4, 100 VA SPST, N.O., LS-14-195, 8 VA SPDT, N.O. / N.C.
