|| Stainless & Buna || SM90-1000-SB

Clear
Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

Description

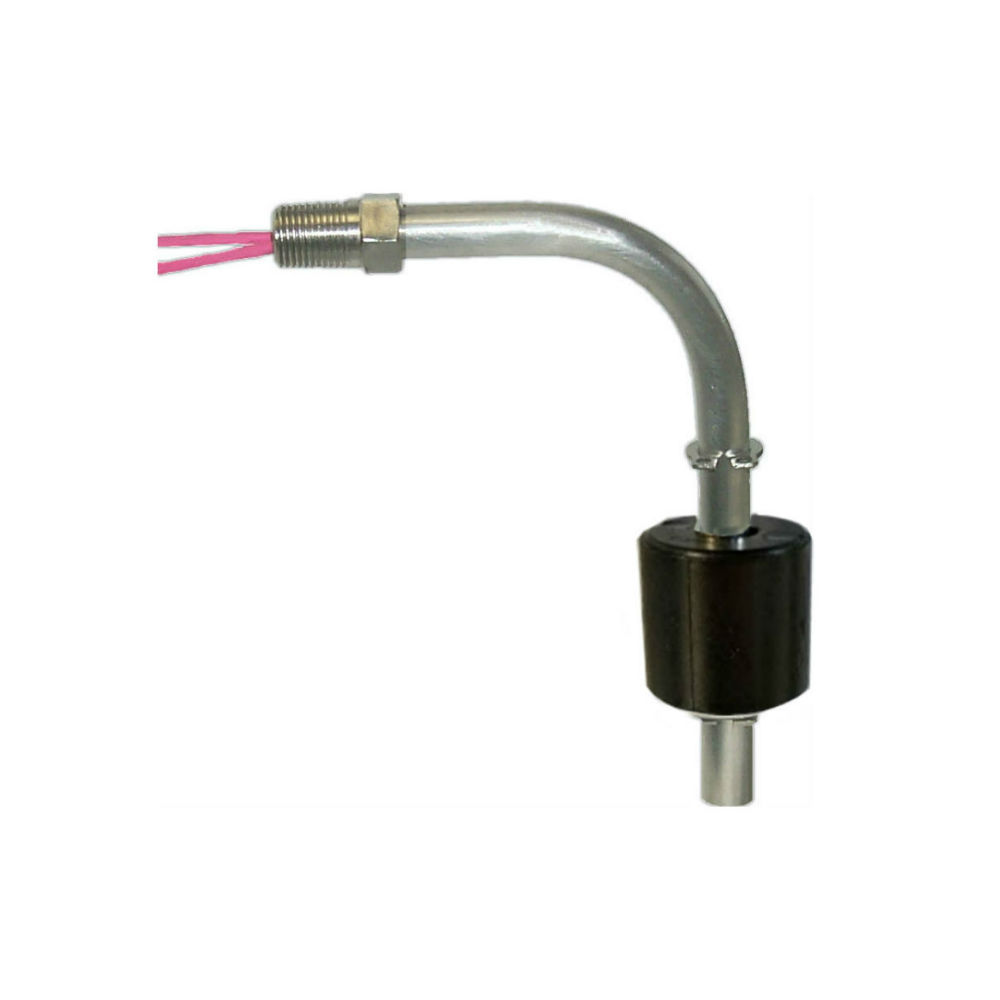

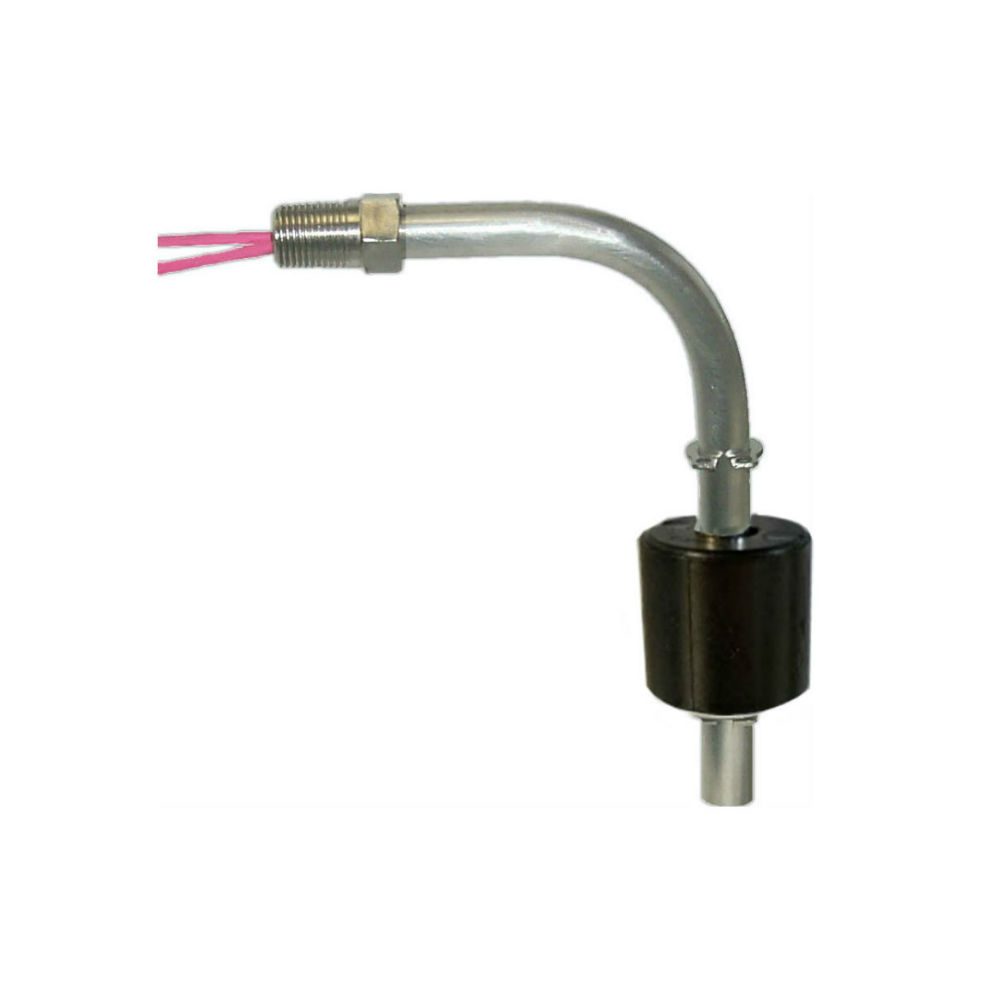

Stainless & Buna float switches are economical and durable. Buna-N delivers excellent buoyancy and long life in most water and oil applications and is typically used in Lubricating Oils, Hydraulic Oils, Gasoline and Diesel Fuel. The 90° bend allows for convenient mounting on the side of the tank or vessel. This float switch can also be mounted up or down to achieve different switch points and conditions.

PDF

Part #Reed SwitchDry StatePrice
SM90-1001-SB70 VAN.O. / N.C.$47.30
SM90-1003-SB100 VAN.O. / N.C.$51.70
SM90-1005-SB3 VASPDT$52.80
Operating TempMaximum PressureFloat Spec. Gravity
180°F water (-40°F to 230°F oil)150 PSI.47
ThreadFloatLead Wires
1/8″ npt1.0″ diameter20 AWG PVC 24″

Additional information

Weight0.25 lbs
Dimensions2.2 x 2.2 x 6.2 in
Part

SM90-1001-SB, 70 VA, N.O. / N.C., SM90-1003-SB, 100 VA, N.O. / N.C., SM90-1005-SB, 3 VA, SPDT
