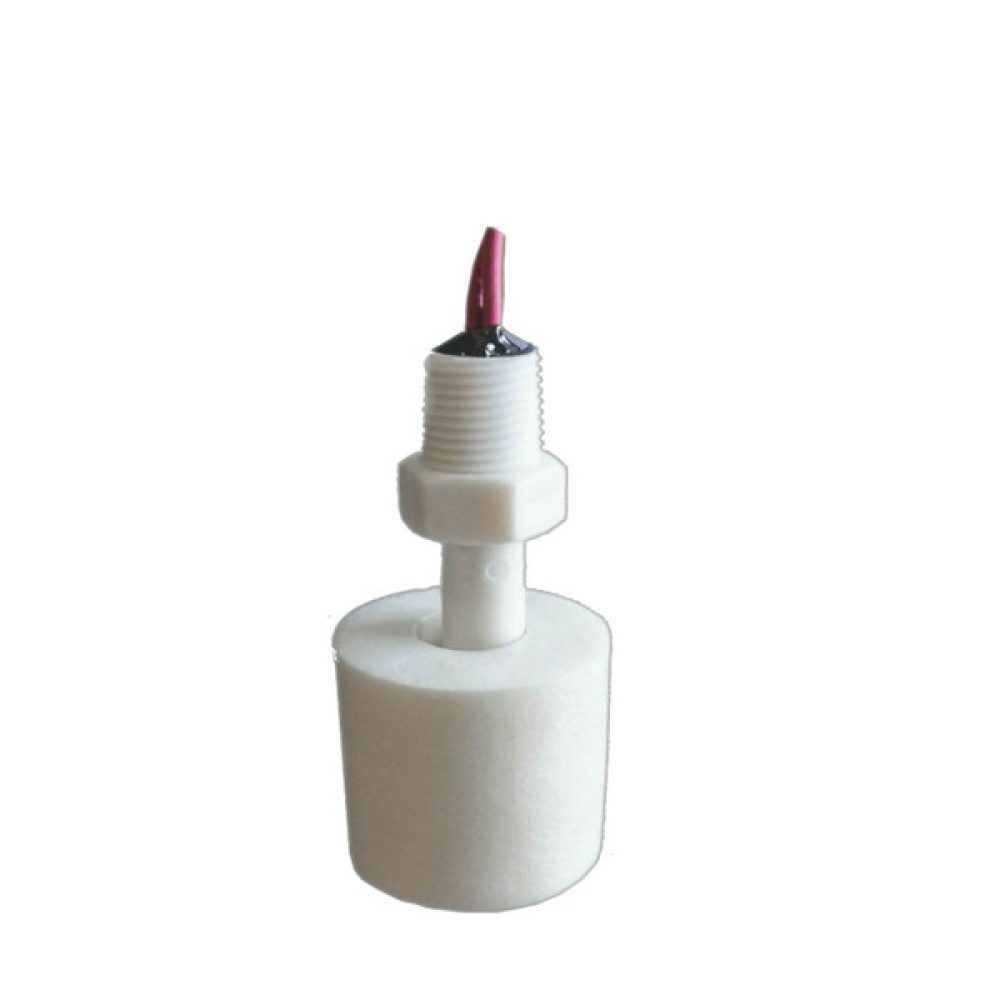

|| Polypropylene || LS-14-180

Clear
SKU: LS-14-181/2, 70 VA, N.O./N.C. Categories: , , Tags: , ,

Description

Plastics are ideal in highly corrosive water and chemical applications were metallic units are not desired. Economical pricing makes plastic the material of choice for the OEM.

PDF

Part # Reed Switch Dry State Price
LS-14-181/2 70 VA SPST N.O.* $23.75
LS-14-183/4 100 VA SPST N.O.* $28.15
LS-14-185 8 VA SPDT N.O. / N.C. $29.25
* The dry state can be changed from Normally Open to Normally Closed by inverting the float. Dry State: The condition of the reed switch when the tank is dry. N.O.: Normally Open N.C.: Normally Closed SPST: Single Pole Single Throw SPDT: Single Pole Double Throw
Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 212°F 150 PSI .70
Thread Float Lead Wires
1/8″ npt 1.0″ diameter 20 AWG PVC 24″

Additional information

Weight 0.18 lbs
Dimensions 2.2 x 2.2 x 6.2 in
Part

LS-14-181/2, 70 VA SPST, N.O., LS-14-183/4, 100 VA SPST, N.O., LS-14-185, 8 VA SPDT, N.O. / N.C.
