|| Polypropylene || LS-209

$17.05

SKU LS-209, 50 watt, N.O. Categories , , Tag

Customization Available
Get this product custom designed to your specifications. Contact us for volume discount pricing, customization and OEM-specific designs.

Get a Quote

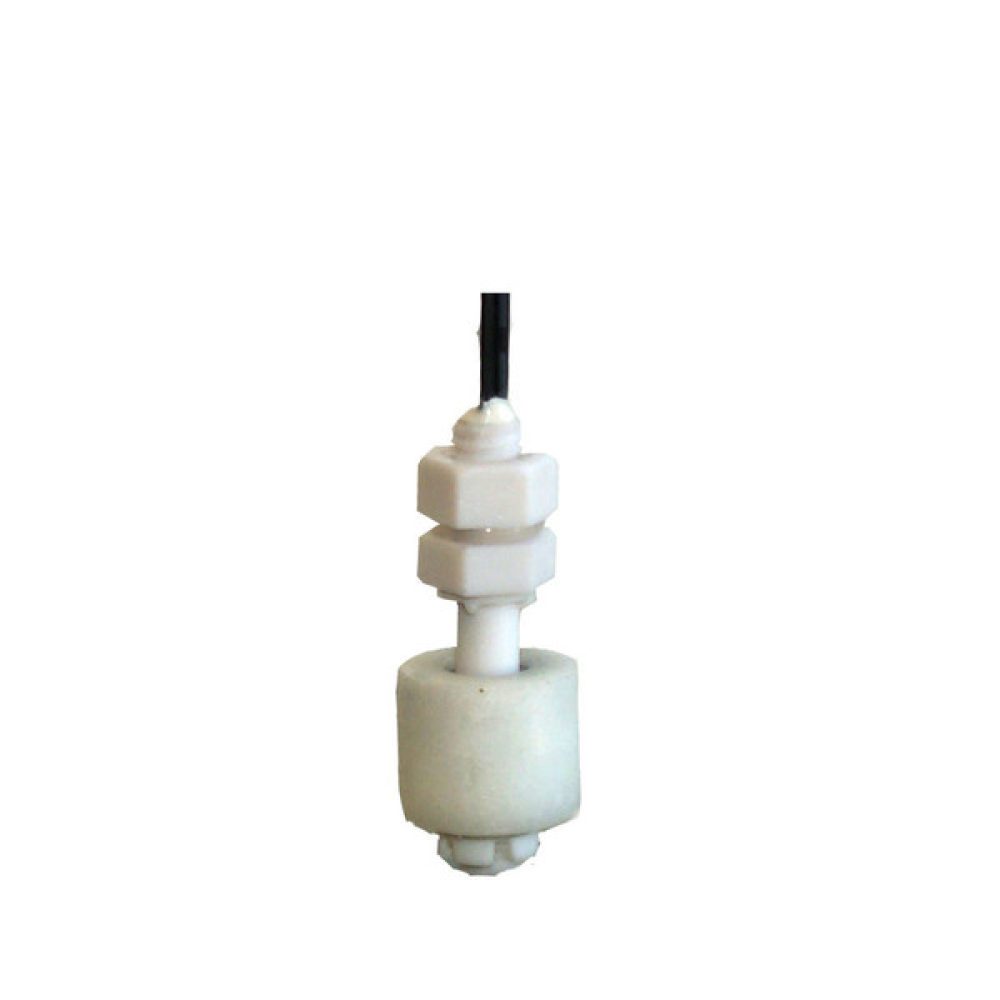

|| Polypropylene || LS-209

Description

Plastics are ideal in highly corrosive water and chemical applications were metallic units are not desired. Economical pricing makes plastic the material of choice for the OEM.

PDF

Part # Reed Switch Dry State Price
LS-209 50 watt; 220v/1.5A MAX N.O.* $15.75

* The dry state can be changed from Normally Open to Normally Closed by inverting the float.

N.O.: Normally Open
N.C.: Normally Closed



Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 194°F 25 PSI .80
Thread Float Lead Wires
M8x1.25 0.74″ diameter 22 AWG PVC 19″

Additional information

Weight 0.02 lbs
Dimensions 2.2 × 2.2 × 6.2 in
