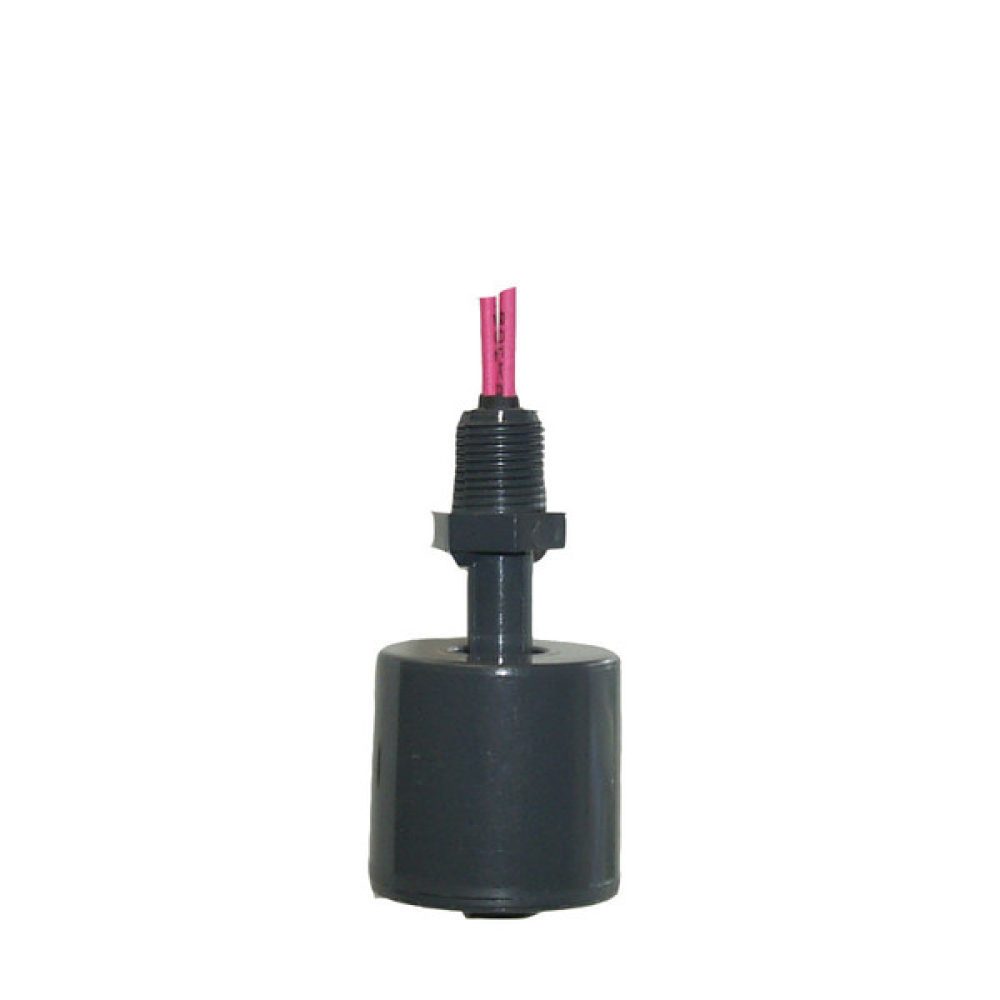

|| PVC || LS-13-150

Clear
SKU: LS-13-151/2, 70 VA, N.O./N.C. Categories: , ,

Description

Plastics are ideal in highly corrosive water and chemical applications were metallic units are not desired. Economical pricing makes plastic the material of choice for the OEM.

PDF

Part #Reed SwitchDry StatePrice
LS-13-151/270 VA SPSTN.O.*$25.10
LS-13-153/4100 VA SPSTN.O.*$29.50
LS-13-1558 VA SPDTN.O. / N.C.$30.60

* The dry state can be changed from Normally Open to Normally Closed by inverting the float.

Dry State: The condition of the reed switch when the tank is dry.
N.O.: Normally Open
N.C.: Normally Closed
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw

Operating TempMaximum PressureFloat Spec. Gravity
-40°F to 140°F100 PSI.78
ThreadFloatLead Wires
1/8″ npt1.0″ diameter20 AWG PVC 24″

Additional information

Weight0.07 lbs
Dimensions2.2 x 2.2 x 6.2 in
Part

LS-13-151/2, 70 VA SPST, N.O., LS-13-153/4, 100 VA SPST, N.O., LS-13-155, 8 VA SPDT, N.O. / N.C.
