|| Stainless Steel || LS-18-040

Clear
Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

Description

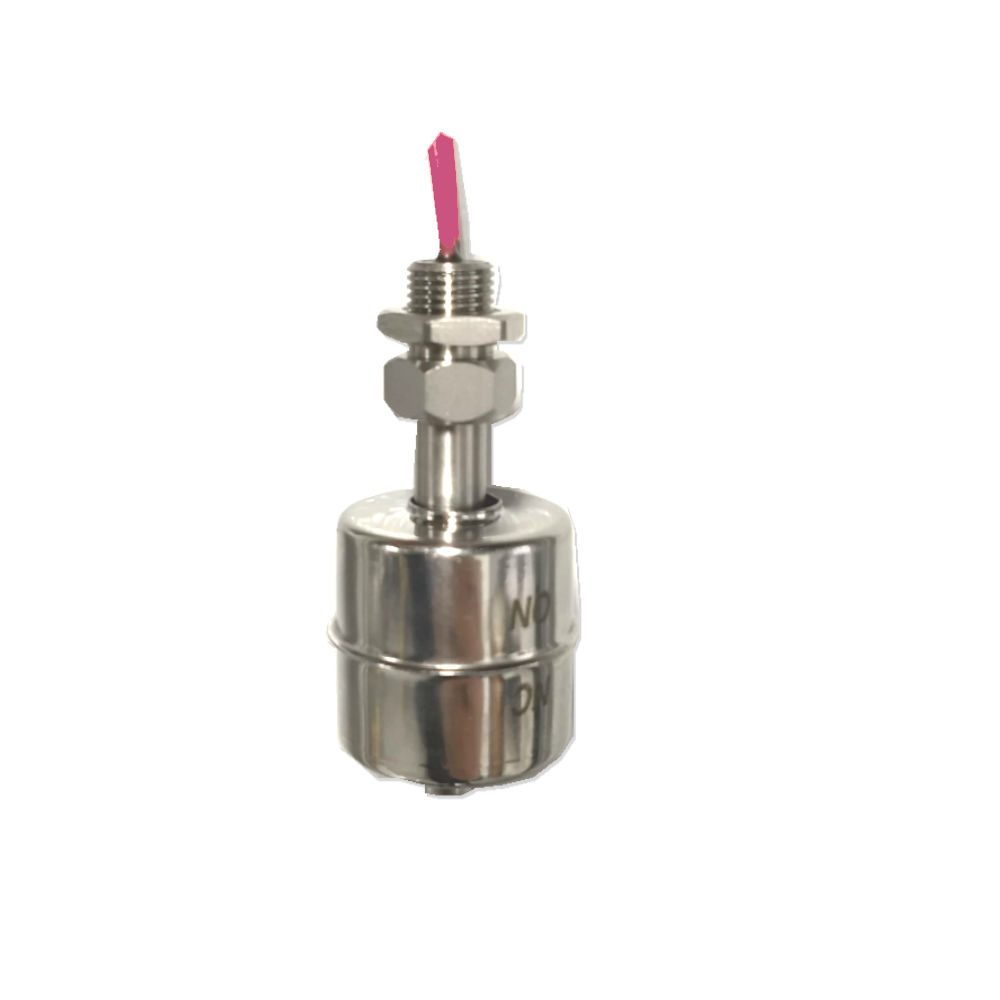

Stainless Steel switches are ideal for high temperature and pressure applications. Rugged construction allows these units to be used for reliable switching in a wide variety of chemicals, oils and water in harsh environments. This unit has a straight thread and a nut for easy installation through a blind hole.

PDF

Part # Reed Switch Dry State Price
LS-18-041/2 70 VA SPST N.O.* $44.75
LS-18-043/4 100 VA SPST N.O.* $48.75
LS-18-045 3 VA SPDT N.O. / N.C. $49.75

* The dry state can be changed from Normally Open to Normally Closed by inverting the float.

Dry State: The condition of the reed switch when the tank is dry.
N.O.: Normally Open
N.C.: Normally Closed
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw

Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 300°F 300 PSI .72
Thread Float Lead Wires
1/8″-27 UNF 1.08″ diameter 20 AWG PVC 24″



Additional information

Weight 0.05 lbs
Dimensions 2.2 × 2.2 × 6.2 in
Part

LS-18-041/2, 70 VA SPST, LS-18-043/4, 100 VA SPST, LS-18-045, 3 VA SPDT
