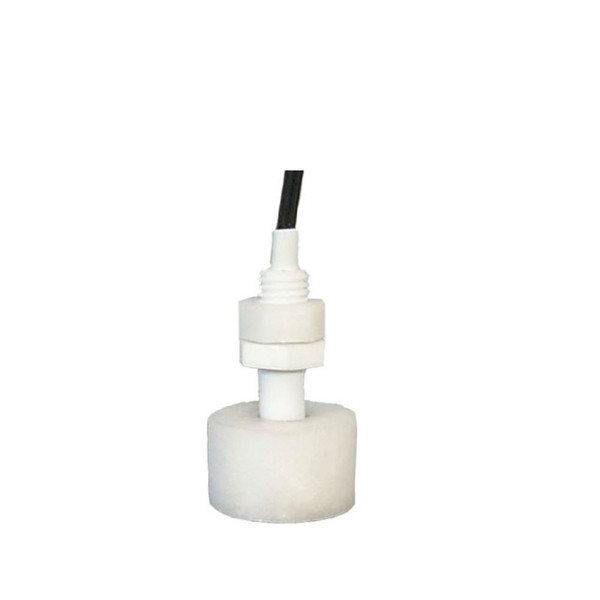

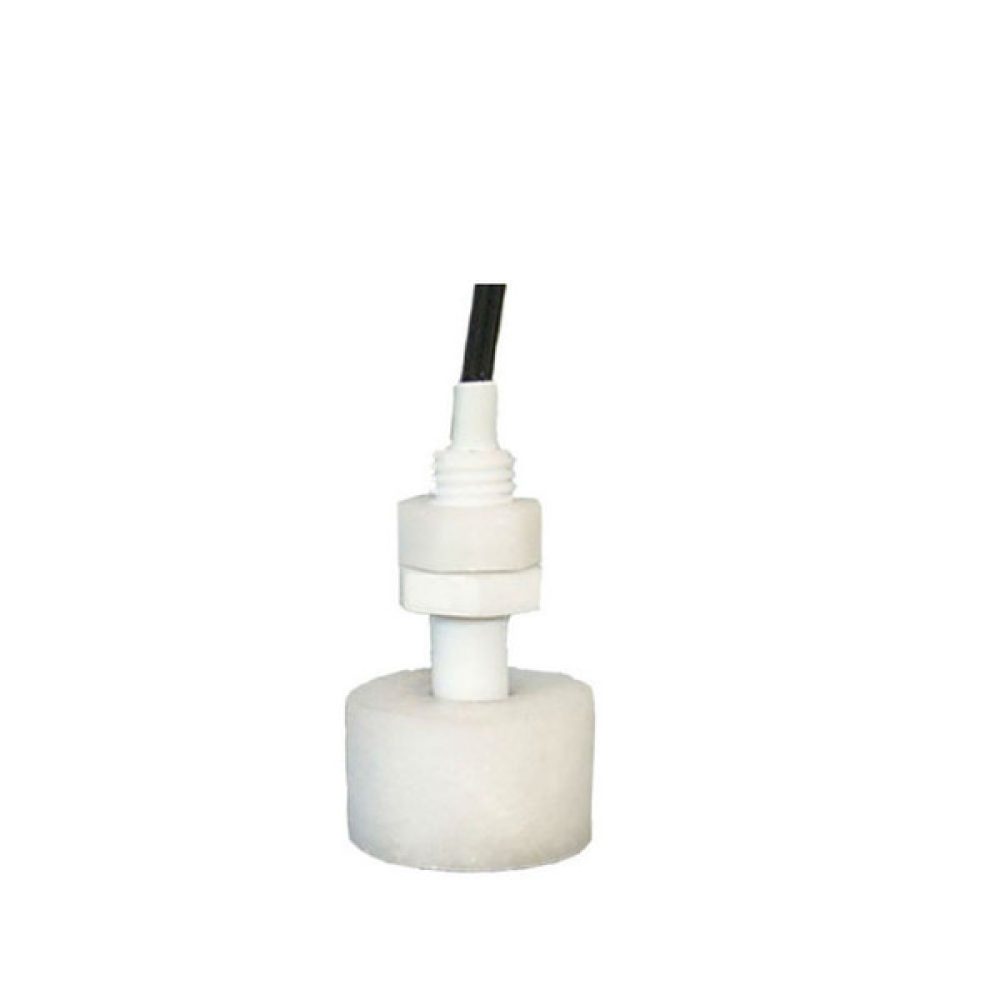

Polypropylene Float Switch – LS-208, 50 VA, SPST, Compact, Removable Float Design

$19.75

SKU: LS-208, 66 VA, N.O./N.C. Categories: , , Tag:
Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

Description

The LS-208 Polypropylene Single-Level Float Switch is a compact, efficient, and chemically resistant level sensor designed for small tank and container applications where space is limited, and reliability is essential. Molded from durable polypropylene, this float switch provides excellent resistance to a wide variety of chemicals, making it suitable for use with acids, alkalis, water-based solutions, oils, and cleaning agents.

Its compact design includes a straight thread fitting with a securing nut, allowing for easy installation even in blind or confined holes. A unique feature of the LS-208 is its removable stainless steel retaining clip, which allows the user to easily remove and reverse the float, enabling the switch to function as either Normally Open (N.O.) or Normally Closed (N.C.) depending on installation needs. This built-in flexibility provides greater control and reduces the need for multiple product variations on-site.

Rated at 50 VA, the internal SPST reed switch is capable of switching up to 220 VDC with a maximum current of 1.5A, making it suitable for signaling, indicator circuits, or control relays in both commercial and industrial applications. The LS-208 is particularly well-suited for OEM systems, portable liquid dispensers, and any application requiring a compact and robust level sensing solution.

The polypropylene housing ensures chemical compatibility and corrosion resistance, while the integrated mounting design simplifies assembly without requiring additional sealing hardware. Whether you’re working with corrosive fluids, sensitive lab solutions, or general water-level control systems, this switch offers consistent and dependable operation.

It comes with standard lead wires for secure and easy electrical connection and is UL Recognized (File# E177423) for compliance with recognized safety and performance standards.

Ideal for use in chemical dosing systems, small water tanks, battery level monitors, or fluid dispensers, the LS-208 is a practical and adaptable float switch solution. Its simple mounting, switch reversibility, and rugged build make it a favorite among engineers and technicians seeking compact, low-maintenance, and chemically resistant liquid level sensors.

If you’re in need of a small-form-factor float switch that doesn’t compromise on durability or flexibility, the LS-208 offers outstanding value and performance across a wide range of fluid applications.

PDF

Operating Temp Maximum Pressure Float Spec. Gravity
15°F to 175°F 150 PSI  0.60
Thread Float Lead Wires
1/8″ straight thread 0.93″ diameter 22 AWG PVC 11.8″

Additional information

Weight 0.02 lbs
Dimensions 2.2 × 2.2 × 6.2 in
