Pump/Valve Control switch – 92442

$175.00

Innovative Components

Description

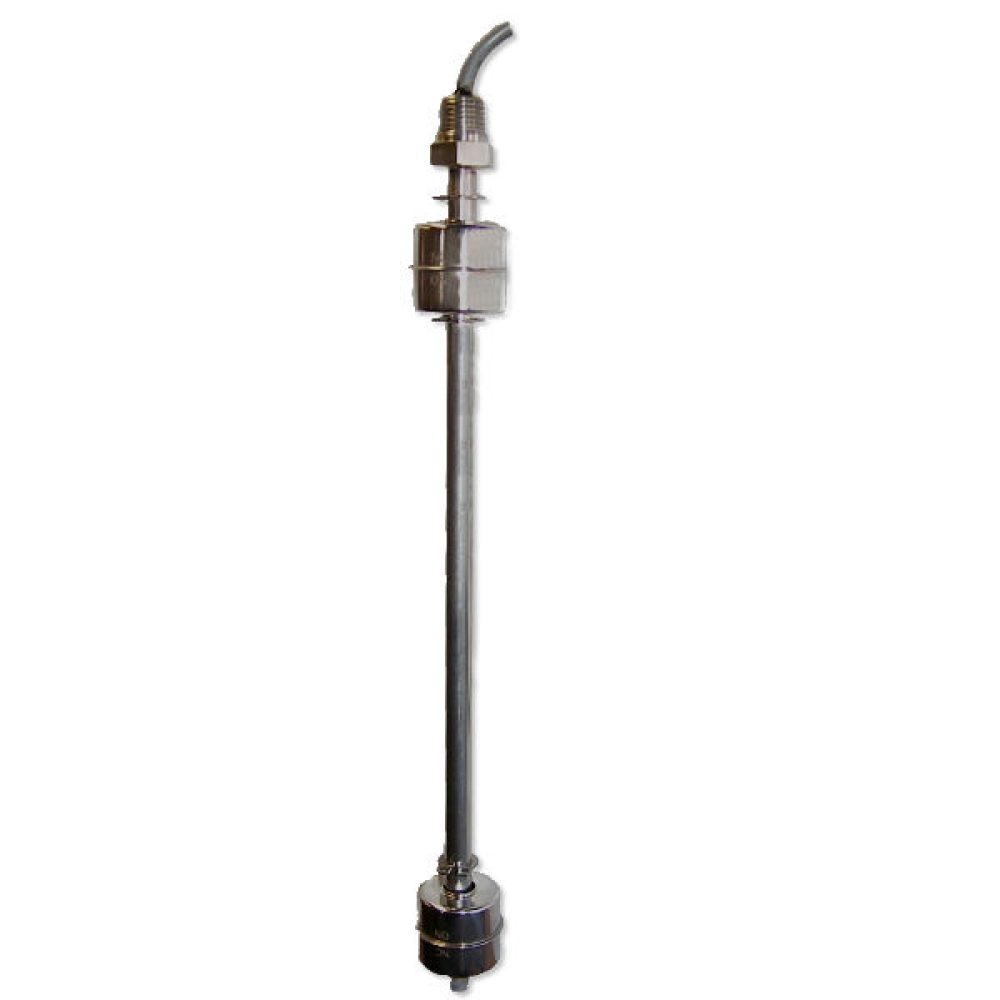

This stainless steel float switch has two separate float levels which can be used with our level control relay to automatically open and close valves or start and stop a pump. The shaft is 10″ long and the two switch points are 8″ apart. The top connection is a standard 1/4″ NPT threaded fitting and has a 4 conductor PVC jacketed cable that is 24″ long. This sensor can be ordered as it or made to your specifications by filling out our made to order form.



PDF

Additional information

Weight .75 lbs
Dimensions 13 × 2 × 2 in
