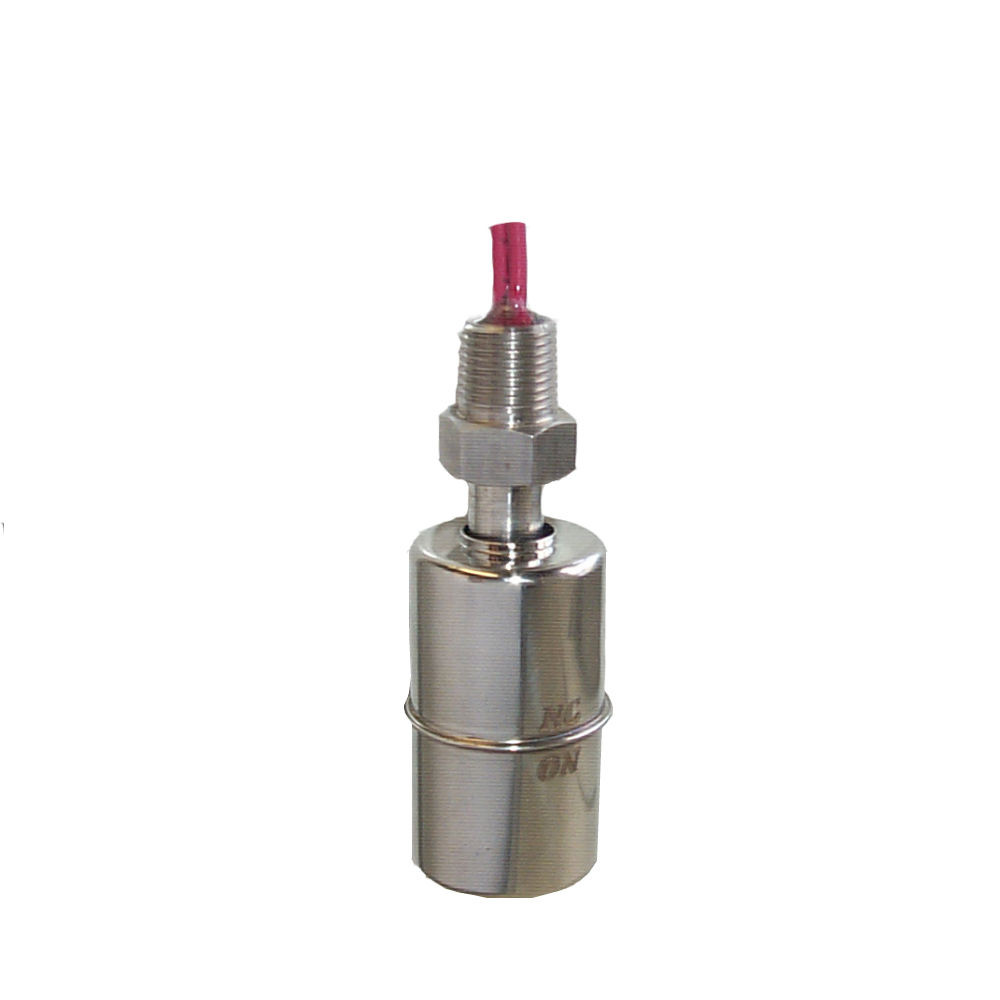

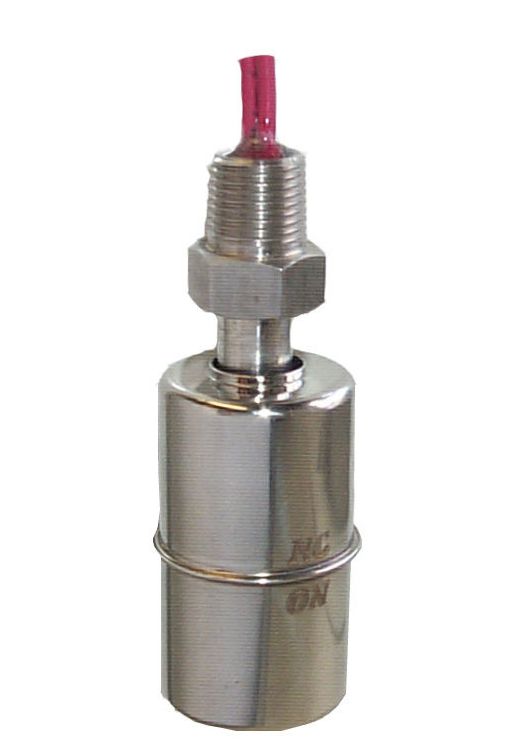

|| Stainless Steel || LS-11-050

Clear
Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

Description

Stainless Steel switches are ideal for high temperature and pressure applications. Rugged construction allows these units to be used for reliable switching in a wide variety of chemicals, oils and water in harsh environments.

PDF

Part #Reed SwitchDry StatePrice
LS-11-051/270 VA SPSTN.O.*$52.80
LS-11-053/4100 VA SPSTN.O.*$57.20
LS-11-0558 VA SPDTN.O. / N.C.$58.30

* The dry state can be changed from Normally Open to Normally Closed by inverting the float.

Dry State: The condition of the reed switch when the tank is dry.
N.O.: Normally Open
N.C.: Normally Closed
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw

Operating TempMaximum PressureFloat Spec. Gravity
-40°F to 300°F400 PSI.71
ThreadFloatLead Wires
1/8″ npt.90″ diameter20 AWG PVC 24″

Additional information

Weight0.06 lbs
Dimensions2.2 x 2.2 x 6.2 in
Part

LS-11-051/2, 70 VA SPST, N.O., LS-11-053/4, 100 VA SPST, N.O., LS-11-055, 8 VA SPDT, N.O. / N.C.
