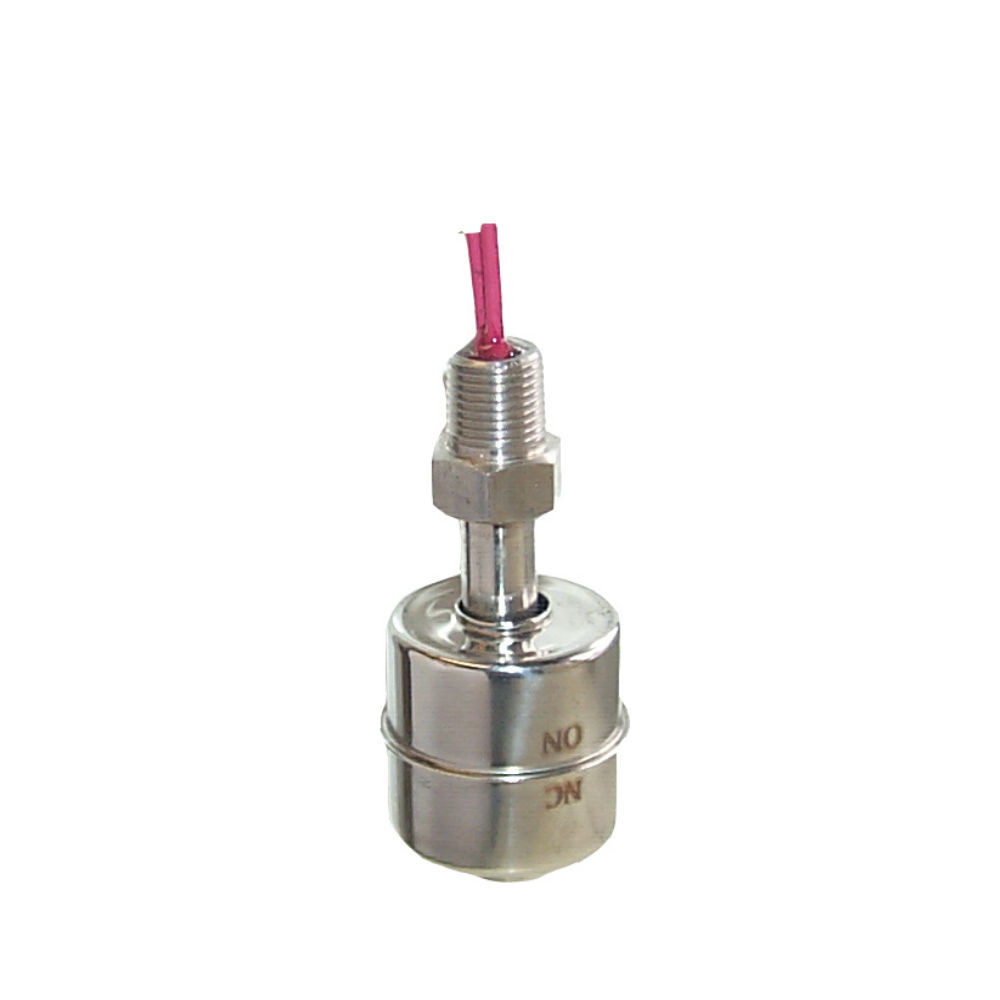

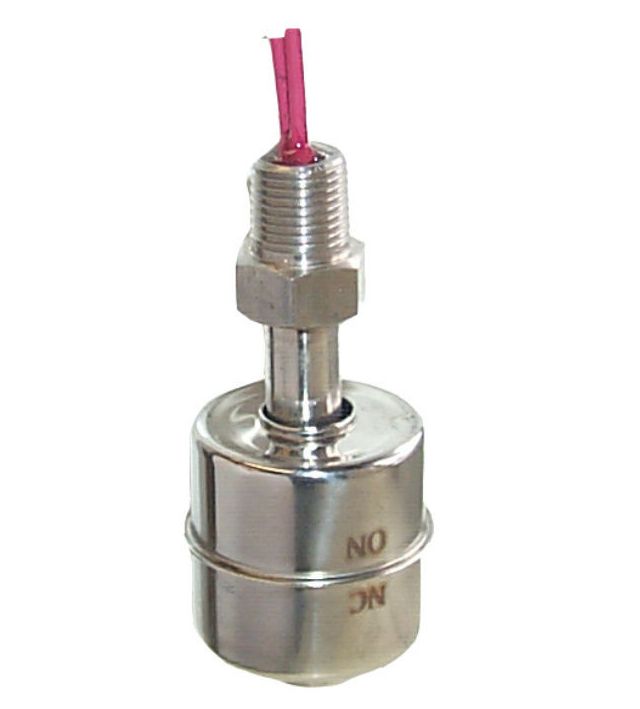

|| Stainless Steel || LS-11-040

Clear

Description

Stainless Steel switches are ideal for high temperature and pressure applications. Rugged construction allows these units to be used for reliable switching in a wide variety of chemicals, oils and water in harsh environments.

PDF

Part # Reed Switch Dry State Price
LS-11-041/2 70 VA SPST N.O.* $42.25
LS-11-043/4 100 VA SPST N.O.* $46.65
LS-11-045 3 VA SPDT N.O. / N.C. $47.75
* The dry state can be changed from Normally Open to Normally Closed by inverting the float. Dry State: The condition of the reed switch when the tank is dry. N.O.: Normally Open N.C.: Normally Closed SPST: Single Pole Single Throw SPDT: Single Pole Double Throw
Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 300°F 300 PSI .72
Thread Float Lead Wires
1/8″ npt 1.08″ diameter 20 AWG PVC 24″

Additional information

Weight 0.05 lbs
Dimensions 2.2 x 2.2 x 6.2 in
Part

LS-11-041/2, 70 VA SPST, LS-11-043/4, 100 VA SPST, LS-11-045, 3 VA SPDT
