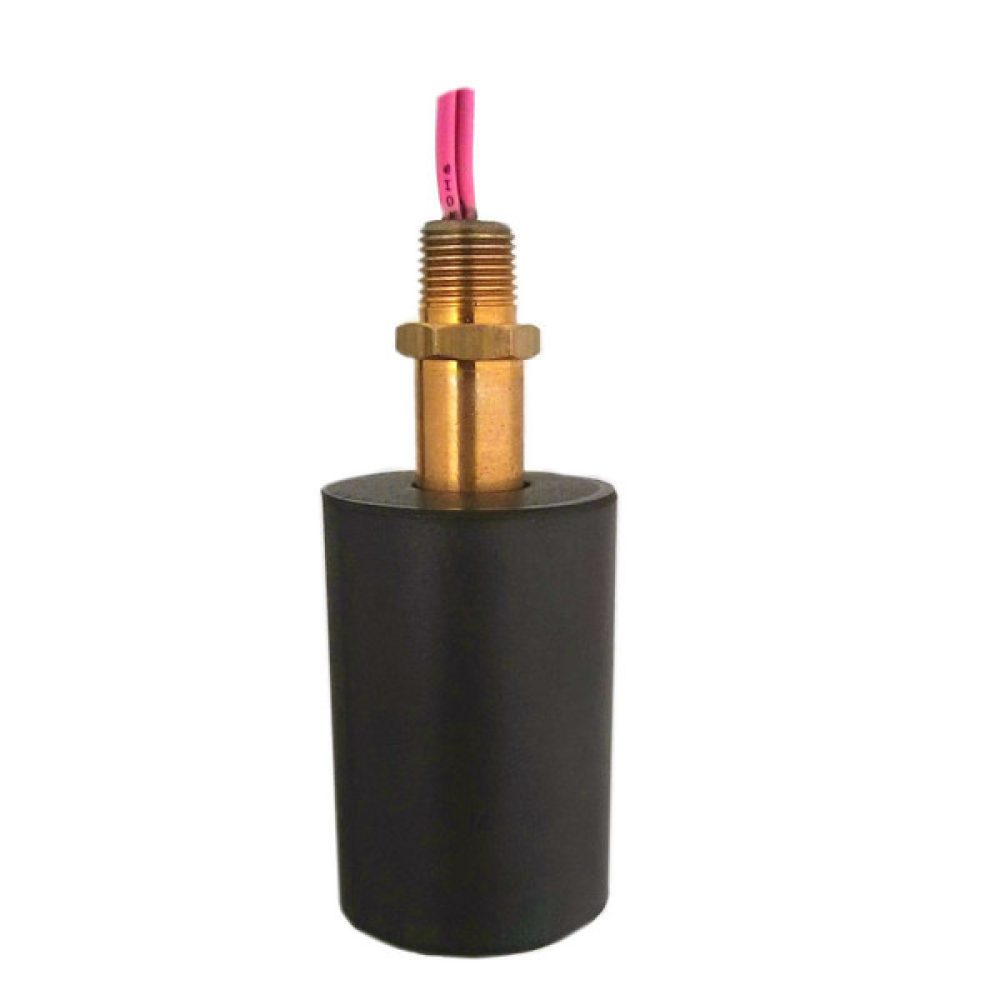

|| Brass & Buna || LS-22-100

Clear
SKU: LS-22-101/2, 70 VA, N.O./N.C. Categories: , , Tags: , , ,

Description

Brass & Buna switches are an economical alternative to stainless steel. Buna-N delivers excellent buoyancy and long life in most water and oil applications and is typically used in Lubricating Oils, Hydraulic Oils, Gasoline and Diesel Fuel.

Standard Single Level Brass & BunaPDF

Part #Reed SwitchDry StatePrice
LS-22-101/270 VA SPSTN.O.*$31.70
LS-22-103/4100 VA SPSTN.O.*$36.10
LS-22-1058 VA SPDTN.O. / N.C.$37.20
LS-22-10625 VA SPDTN.O. / N.C.$38.30
LS-22-107100 VA SPDTN.O. / N.C.$39.40

* The dry state can be changed from Normally Open to Normally Closed by inverting the float.

Dry State: The condition of the reed switch when the tank is dry.
N.O.: Normally Open
N.C.: Normally Closed
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw

Operating TempMaximum PressureFloat Spec. Gravity
180°F (-40°F to 230°F oil)150 PSI.50
ThreadFloatLead Wires
1/8″ npt1.25″ diameter20 AWG PVC 24″

Additional information

Weight0.1 lbs
Dimensions2.2 x 2.2 x 6.2 in
Part

LS-22-101/2, 70 VA SPST, N.O., LS-22-103/4, 100 VA SPST, N.O., LS-22-105, 8 VA SPDT, N.O. / N.C., LS-22-106, 25 VA SPDT, N.O. / N.C., LS-22-107, 100 VA SPDT, N.O. / N.C.
