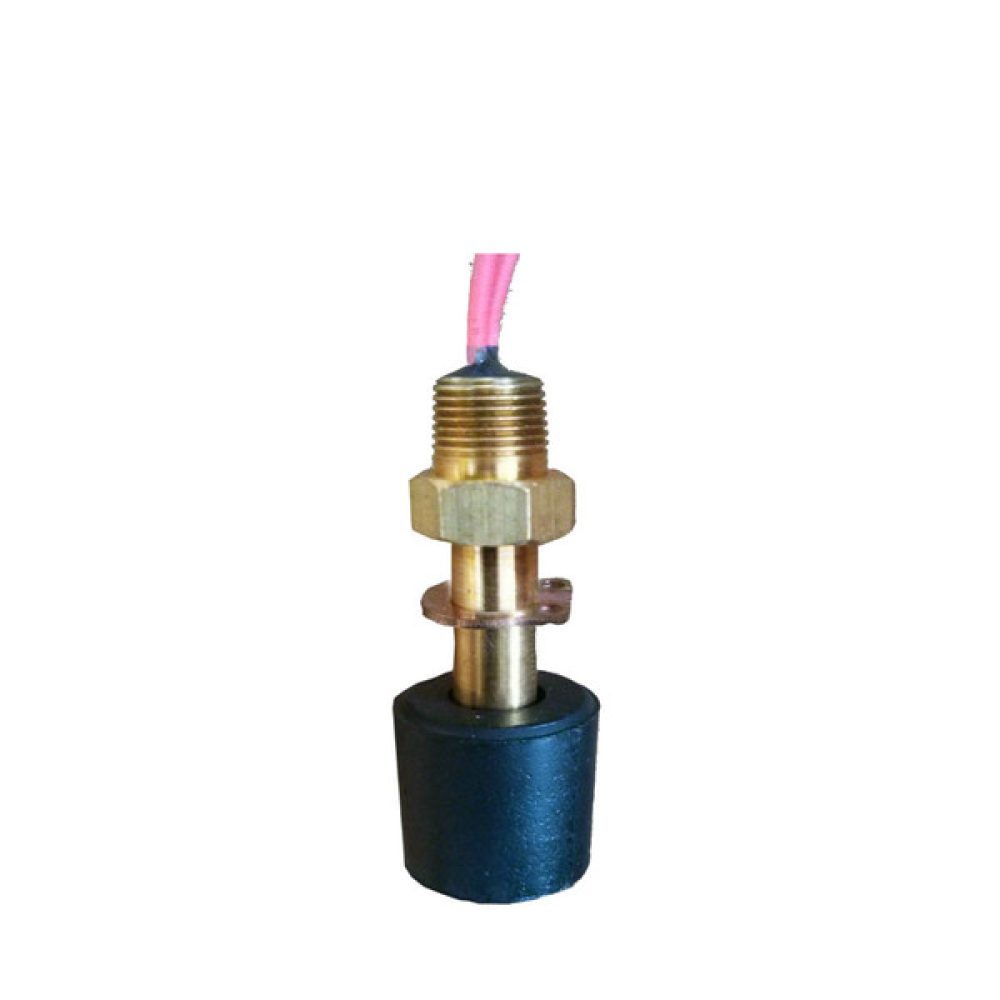

|| Brass & Buna || LS-12-120

SKU: LS-12-121/2, 70 VA, N.O./N.C. Categories: , , Tag:
Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%


Brass & Buna switches are an economical alternative to stainless steel. Buna-N delivers excellent buoyancy and long life in most water and oil applications and is typically used in Lubricating Oils, Hydraulic Oils, Gasoline and Diesel Fuel.

Standard Single Level Brass & BunaPDF

Part # Reed Switch Dry State Price
LS-12-121/2 70 VA SPST N.O.* $25.10
LS-12-123/4 100 VA SPST N.O.* $29.50
LS-12-125 3 VA SPDT N.O. / N.C. $30.60

* The dry state can be changed from Normally Open to Normally Closed by inverting the float.

Dry State: The condition of the reed switch when the tank is dry.
N.O.: Normally Open
N.C.: Normally Closed
SPST: Single Pole Single Throw
SPDT: Single Pole Double Throw

Operating Temp Maximum Pressure Float Spec. Gravity
180°F (-40°F to 230°F oil) 150 PSI .80
Thread Float Lead Wires
1/8″ npt .75″ diameter 20 AWG PVC 24″

Additional information

Weight 0.05 lbs
Dimensions 2.2 × 2.2 × 6.2 in

LS-12-121/2, 70 VA SPST. N.O., LS-12-123/4, 100 VA SPST. N.O., LS-12-125, 3 VA SPST. N.O./N.C.
