|| PTFE || LS-15-600

Clear
Discount Pricing! 5-24pcs 10%; 25-99pcs 20%; 100+ 30%

Description

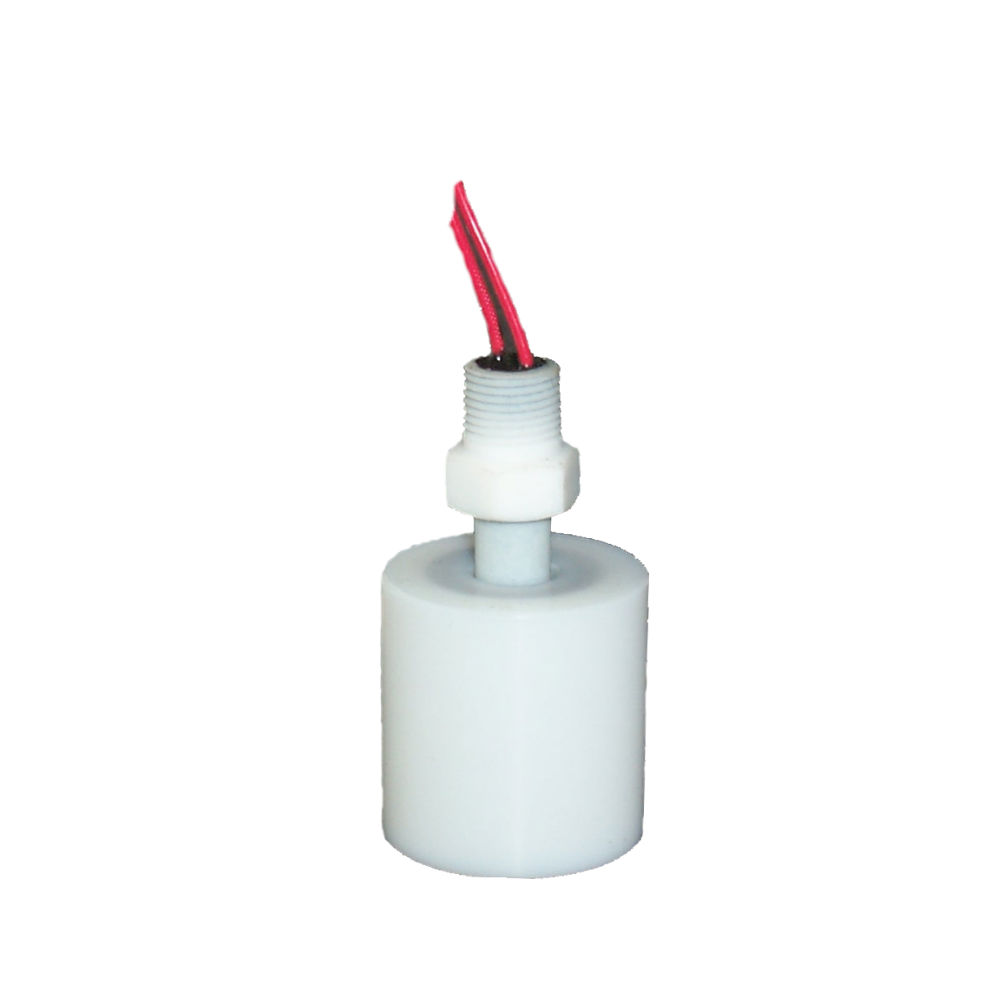

PTFE is ideal for ultra-pure, highly corrosive applications. The non-stick nature of PTFE resists build-up of foreign material or sticky media. This standard single-level float switch has a 1/8″ NPT threaded connection and a float diameter of 1.10″

PDF

Part # Reed Switch Dry State Price
LS-15-601 70 VA N.O. $210.00
LS-15-602 70 VA N.C. $210.00
LS-15-603 100 VA N.O. $215.00
LS-15-604 100 VA N.C. $215.00
LS-15-605 3 VA SPDT $218.00



Operating Temp Maximum Pressure Float Spec. Gravity
-40°F to 375°F 50 PSI @ 150°F .70
Thread Float Lead Wires
1/8″ npt 1.10″ diameter 22 AWG PTFE 24″

Additional information

Weight 0.11 lbs
Dimensions 2.2 × 2.2 × 6.2 in
Part

LS-15-601, 70 VA, N.O., LS-15-602, 70 VA, N.O., LS-15-603, 100 VA, N.O., LS-15-604, 100 VA, N.C., LS-15-605, 8 VA, SPDT
